SKF

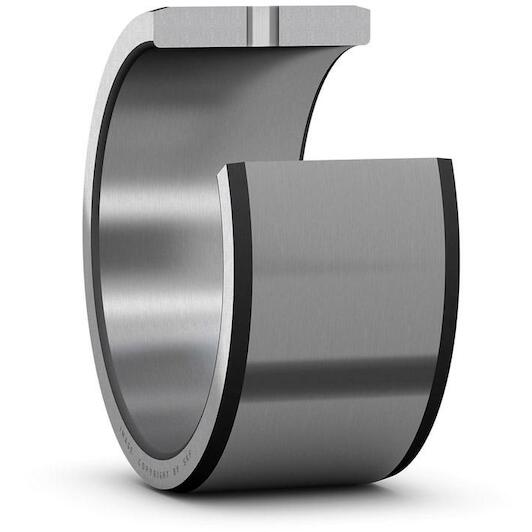

SKF IR 8X12X10 IS1 inner ring for needle roller bearing 8 x 12 x 10 mm

Recommended Retail Price €19.94
9.80 tax incl.
€8.10 excl. VAT (incl. all environmental contributions)
On order: delivered from 13/06/2026
each

  • Ordered before 20:00 - delivered as of 13/06/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Inner rings with relubrication features for needle roller bearings are available as separate components. They are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground. The inner rings in the IR series are the standard SKF inner rings for needle roller bearings. The inner ring contains a lubrication hole to facilitate relubrication.

  • Enable full interchangeability of inner rings
  • Standard SKF inner rings for needle roller bearings
  • Accommodate axial displacement in both directions
  • Enable relubrication via inner ring
Key features according to our expert

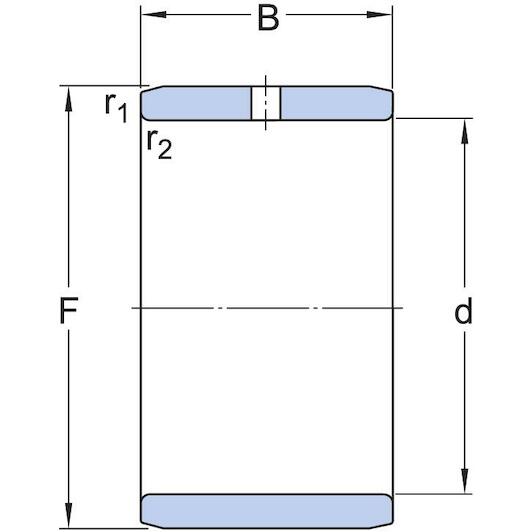

  • Inner diameter: 8 mm
  • Outer diameter: 12 mm
  • Width: 10 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570553581
  • Supplier number: SKF IR 8X12X10 IS1
Inner diameter
8 mm
Outer diameter
12 mm
Width
10 mm
Relubrication feature
With
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
12
Bore diameter
8
Coating
Without
Material
Bearing steel
Outside diameter
12
Special raceway feature
None
