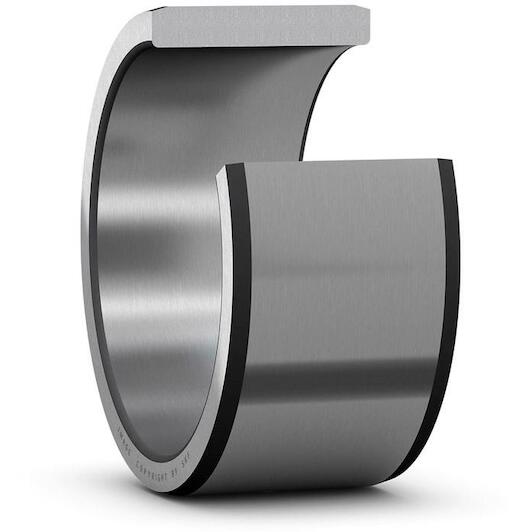

SKF IR 40X50X22 inner ring for needle roller bearing 40 x 50 x 22 mm

SKF
Supplier number: SKF IR 40X50X22 | EAN 7316570113679
Recommended Retail Price €62.74
30.95 tax incl.
€25.58 excl. VAT (incl. all environmental contributions)
On order: delivered from 17/10/2026

  • Ordered before 20:00 - delivered as of 17/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€30.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 40 mm
  • Outer diameter: 50 mm
  • Width: 22 mm

Product description

  • Inner rings for needle roller bearings are available as separate components. They are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground. The inner rings in the IR series are the standard SKF inner rings for needle roller bearings.

Avantages

  • Enable full interchangeability of inner rings
  • Standard SKF inner rings for needle roller bearings
  • Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
40 mm
Outer diameter
50 mm
Width
22 mm
Relubrication feature
Without
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
50 mm
Bore diameter
40 mm
Coating
Without
Material
Bearing steel
Outer diameter
50 mm
Special raceway feature
None
  • Brand SKF
  • EAN 7316570113679
  • Supplier number SKF IR 40X50X22
