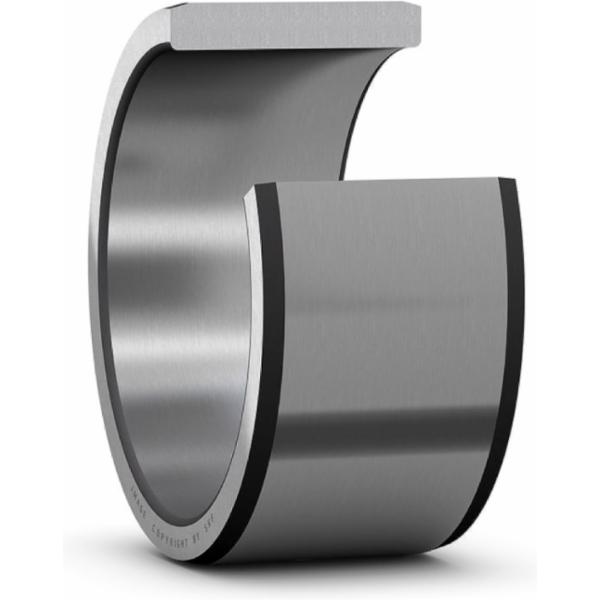

SKF IR 240X265X60 inner ring for needle roller bearing 240 x 265 x 60 mm

SKF
Supplier number: SKF IR 240X265X60 | EAN 7316571567853
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 240 mm
  • Width: 60 mm
  • Outer diameter: 265 mm

Product description:

  • Inner rings in the IR series are the standard SKF inner rings for needle roller bearings
  • They are made of carbon chrome bearing steel that is hardened and ground
  • The raceway surface, which is precision finished, has a lead-in chamfer on both sides to simplify assembly
  • The chamfer also protects the sealing tabs from damage during the assembly process

All Features

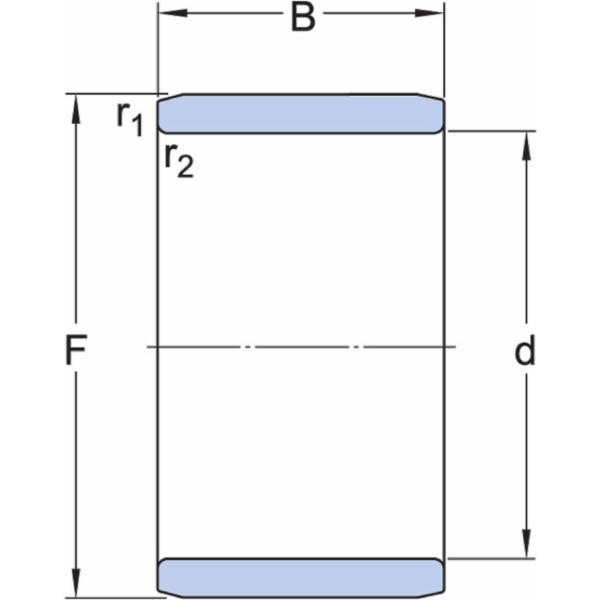

Inner diameter
240 mm
Width
60 mm
Outer diameter
265 mm
Coating
Without
Relubrication feature
Without
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
265 mm
Bore diameter
240 mm
Material
Bearing steel
Outer diameter
265 mm
Special raceway feature
None
  • Brand SKF
  • EAN 7316571567853
  • Supplier number SKF IR 240X265X60
