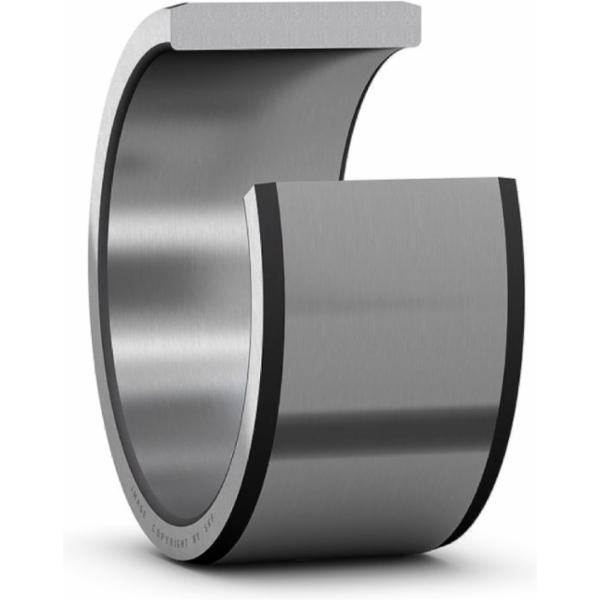

SKF IR 22X28X30 inner ring for needle roller bearing 22 x 28 x 30 mm

Supplier number: SKF IR 22X28X30 | EAN 7316570767094
This product has been discontinued.



Product information

Key features according to our expert

  • Inner diameter: 22 mm
  • Width: 30 mm
  • Outer diameter: 28 mm

Product description:

  • Inner rings in the IR series are the standard SKF inner rings for needle roller bearings
  • They are made of carbon chrome bearing steel that is hardened and ground
  • The raceway surface, which is precision finished, has a lead-in chamfer on both sides to simplify assembly
  • The chamfer also protects the sealing tabs from damage during the assembly process

All Features

Inner diameter
22 mm
Width
30 mm
Outer diameter
28 mm
Coating
Without
Relubrication feature
Without
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
28 mm
Bore diameter
22 mm
Base material
Bearing steel
Outside diameter
28 mm
Special raceway feature
None
  • Brand SKF
  • EAN 7316570767094
  • Supplier number SKF IR 22X28X30
