SKF

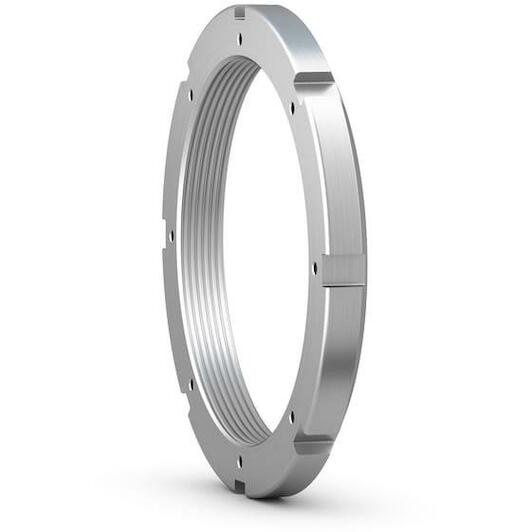

SKF HM 3164 locknut 320 x 400 x 42 mm Tr320x5

Recommended Retail Price €3,493.23
1,729.40 tax incl.
€1,429.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

HM lock nuts are used to locate bearings onto a shaft. They have metric trapezoidal threads and eight equally spaced slots located around their circumference to accommodate an impact spanner. They should be locked by a locking clip to prevent unintentional loosening. HM lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with new locking clip
  • Available for thread Tr 220x4 to Tr 1120x8 (sizes 44 to /1120)
Key features according to our expert
  • Outer diameter: 400 mm
  • Width: 42 mm
  • Thread dimension: Tr320 x 5
Specifications / All features
  • Brand: SKF
  • EAN: 7316577115256
  • Supplier number: SKF HM 3164
Outer diameter
400 mm
Width
42 mm
Thread dimension
Tr320 x 5
Outside diameter
400
Bore diameter
320
Associated mounting tool
TMFN 52-64
Nut for hydraulic mounting
No
Locking device
Locking clip
Thread designation
Tr 320x5
