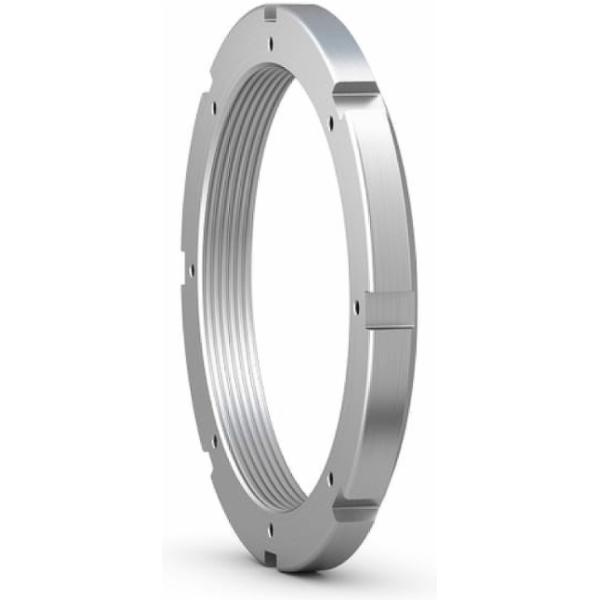

SKF HM 3088 locknut 440 x 520 x 60 mm Tr440x5

SKF
Supplier number: SKF HM 3088 | EAN 7316570119992
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Outer diameter: 520 mm
  • Width: 60 mm

Product description:

  • Lock nuts of the HM(E) 30, HM 31 series with a metric trapezoidal thread are secured with an MS lock washer
  • Consisting of the washer, a hex bolt and spring washer DIN28

All Features

Outer diameter
520 mm
Width
60 mm
Outer diameter
520 mm
Bore diameter
440 mm
Associated mounting tool
TMFN 64-80
Nut for hydraulic mounting
No
Locking device
Locking clip
Thread designation
Tr 440x5
  • Brand SKF
  • EAN 7316570119992
  • Supplier number SKF HM 3088
