SKF

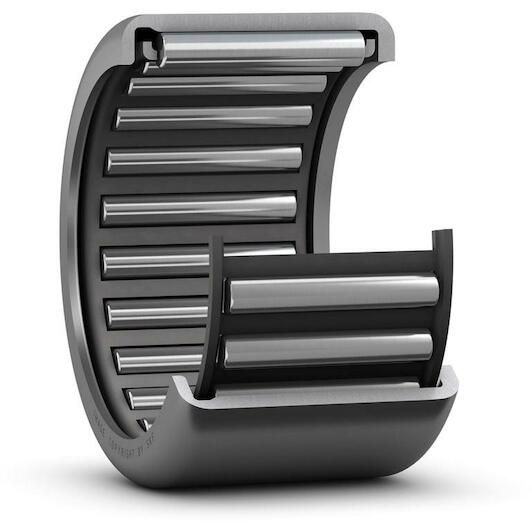

SKF HK 3520 Single-row needle roller bearing without inner ring 35 x 42 x 20 mm

Recommended Retail Price €24.81
12.20 tax incl.
€10.08 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Ordered before 20:00 - delivered as of 15/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

  • High radial load carrying capacity
  • High stiffness
  • Very low cross-sectional height
Key features according to our expert
  • Inner diameter: 35 mm
  • Width: 20 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Sheet steel
  • Version (Needle cage): Open
  • Outer diameter: 42 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577010568
  • Supplier number: SKF HK 3520
Inner diameter
35 mm
Width
20 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Sheet steel
Version (needle cage)
Open
Outer diameter
42 mm
Basic static load rating
46.5
Bearing part
Bearing without inner ring
Tolerance class
Normal
Aligning feature
Without
Lubricant
None
Bore diameter of needle roller complement
35
Relubrication feature
Without
Reference speed
7000
Number of flanges, outer ring
2
Cage
Sheet steel
Sealing
Without
Basic dynamic load rating
22.9
Outer ring type
Drawn cup with open ends
Limiting speed
8000
Coating
Without
Outside diameter
42
Material, bearing
Bearing steel
