SKF

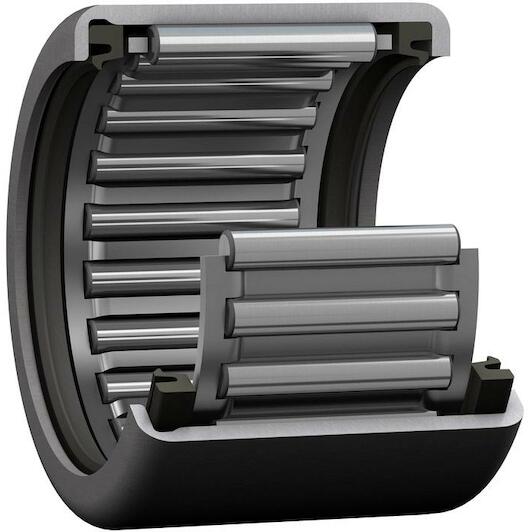

SKF HK 2520.2RS Single-row needle roller bearing without inner ring 25 x 32 x 20 mm

Recommended Retail Price €26.69
12.95 tax incl.
€10.70 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. Sealed bearings are delivered with an initial grease fill.

  • High radial load carrying capacity
  • High stiffness
  • Very low cross-sectional height
  • Sealed for increased reliability
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 20 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Rubber
  • Material (cage): Sheet steel
  • Version (Needle cage): Open
  • Outer diameter: 32 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571118000
  • Supplier number: SKF HK 2520.2RS
Inner diameter
25 mm
Width
20 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Rubber
Material (cage)
Sheet steel
Version (needle cage)
Open
Outer diameter
32 mm
Basic static load rating
24
Bearing part
Bearing without inner ring
Tolerance class
Normal
Aligning feature
Without
Sealing type
Contact
Bore diameter of needle roller complement
25
Relubrication feature
Without
Lubricant
Grease
Number of flanges, outer ring
2
Cage
Sheet steel
Sealing
Seal on both sides
Basic dynamic load rating
15.1
Outer ring type
Drawn cup with open ends
Limiting speed
6700
Coating
Without
Outside diameter
32
Material, bearing
Bearing steel
