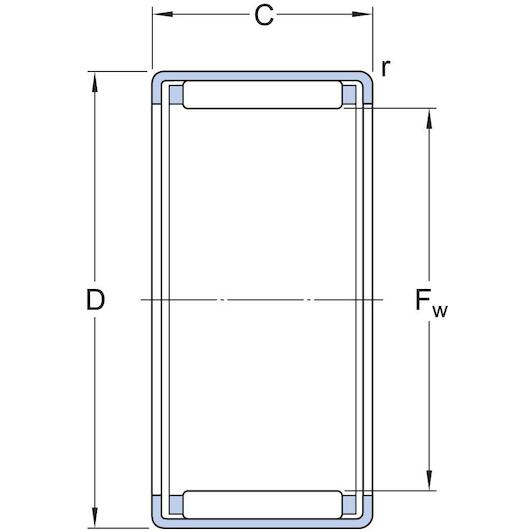

What are the dimensions of the SKF HK 2216 needle roller bearing?

The bearing has an inside diameter of 22 mm, an outside diameter of 28 mm, and a width of 16 mm.

Does this drawn cup needle bearing come with an inner ring?

No, this bearing is supplied without an inner ring. The shaft serves directly as the raceway.

Does the SKF HK 2216 feature integrated seals?

No, this is an open-ended design without seals.

What material is the cage made of?

The cage of this single-row needle bearing is made of sheet steel.

How many rows of rollers does this bearing have?

The HK 2216 has a single row of needle rollers.

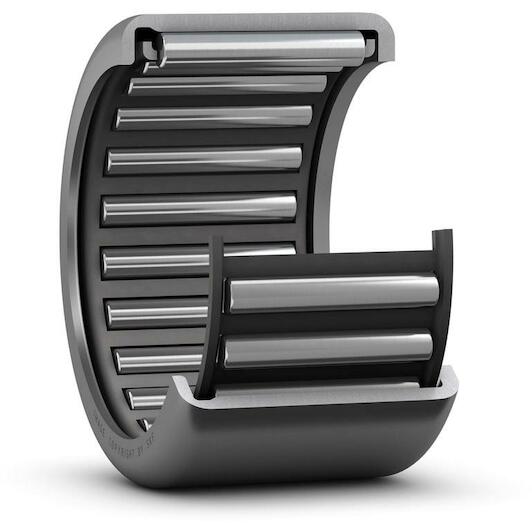

SKF HK 2216 Single-row needle roller bearing without inner ring 22 x 28 x 16 mm

Supplier number: SKF HK 2216 | EAN 7316577010445

Recommended Retail Price €17.70

8.60 tax incl.

€7.11 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact needle bearing for high radial loads

Practical benefits

High radial load capacity: Thanks to the large number of rollers, you achieve superior stiffness and high radial load ratings during demanding operations.
Space saving open design: The low cross-sectional height of the Skf HK 2216 lets you design extremely compact bearing arrangements in tight housings.
Durable sheet steel cage: The robust steel cage accurately guides the needle rollers so you experience smooth rotation and extended component service life.

In a nutshell

The right choise for

With the Skf hk 2216 drawn cup needle roller bearing, you achieve high radial performance in tight installation spaces. Featuring a minimal cross-sectional height and a design without an inner ring, this single-row bearing mounts directly onto a hardened shaft in gearboxes, pumps, or drive units. The large complement of rollers provides exceptional radial load capacity and stiffness during heavy operations. In addition, the durable sheet steel cage ensures precise roller guidance, keeping friction low and delivering smooth, dependable rotation throughout demanding service.

Product information FAQ

€8.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 22 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 28 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 22 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 28 mm
Basic static load rating: 22.4
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Lubricant: None
Bore diameter of needle roller complement: 22
Relubrication feature: Without
Reference speed: 11000
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 13
Outer ring type: Drawn cup with open ends
Limiting speed: 12000
Coating: Without
Outer diameter: 28
Material, bearing: Bearing steel

Brand SKF
01290812
EAN 7316577010445
Supplier number SKF HK 2216

Frequently asked questions about this product

Answered by specialists

What are the dimensions of the SKF HK 2216 needle roller bearing?: The bearing has an inside diameter of 22 mm, an outside diameter of 28 mm, and a width of 16 mm.
Does this drawn cup needle bearing come with an inner ring?: No, this bearing is supplied without an inner ring. The shaft serves directly as the raceway.
Does the SKF HK 2216 feature integrated seals?: No, this is an open-ended design without seals.
What material is the cage made of?: The cage of this single-row needle bearing is made of sheet steel.
How many rows of rollers does this bearing have?: The HK 2216 has a single row of needle rollers.
