What are the dimensions of this needle roller bearing?

The bearing has an inside diameter of 22 mm, an outside diameter of 28 mm, and a width of 12 mm.

Does this drawn cup needle roller bearing include an inner ring?

No, this model comes without an inner ring and runs directly on a hardened and ground shaft.

Is this SKF needle roller bearing sealed?

No, this bearing has an open-ended design without integrated seals.

What material is the cage made of?

The cage of this drawn cup needle roller bearing is made of sheet steel.

How many needle rows does the SKF HK 2212 feature?

This bearing features 1 row of rollers, providing high radial load capacity in compact spaces.

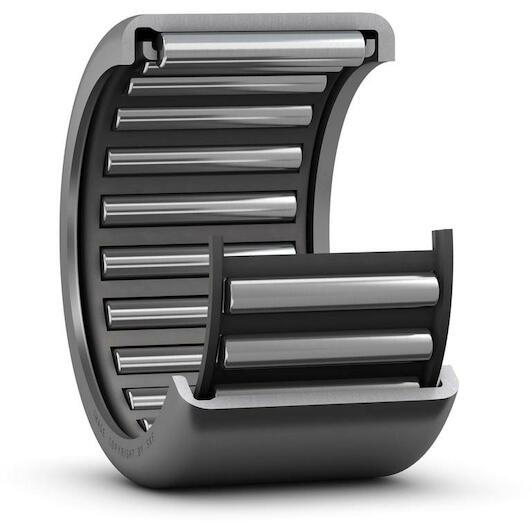

SKF HK 2212 single-row needle roller bearing without inner ring 22 x 28 x 12 mm

Supplier number: SKF HK 2212 | EAN 7316577010438

Recommended Retail Price €16.13

7.80 tax incl.

€6.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact mounting with Skf HK 2212

Practical benefits

Minimal radial space required: You fit high performance into tight housings thanks to the low sectional height drawn cup design.
High radial load capacity: A high roller count distributes heavy radial loads evenly for increased rigidity and stability.
Reliable sheet steel cage: The strong pressed steel cage precisely guides the needles to maintain smooth mechanical operation.

In a nutshell

The right choise for

With the Skf hk 2212 drawn cup needle roller bearing, you achieve high radial performance in tightly constrained mounting spaces. Operating without an inner ring directly on a hardened and ground shaft, this single-row bearing minimizes both overall diameter and assembly weight. The low-profile drawn cup design with open ends and the robust sheet steel cage guide the needle rollers precisely to handle heavy radial loads with ease. Ideal for compact industrial gearboxes, automotive drivetrain components, and pump shafts, the open hk 2212 bearing measuring 22 x 28 x 12 mm delivers smooth rotation and dependable mechanical stability.

Product information FAQ

€7.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 22 mm
Width: 12 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 28 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 22 mm
Width: 12 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 28 mm
Basic static load rating: 13.7
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Lubricant: None
Bore diameter of needle roller complement: 22
Relubrication feature: Without
Reference speed: 11000
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 8.8
Outer ring type: Drawn cup with open ends
Limiting speed: 12000
Coating: Without
Outer diameter: 28
Material, bearing: Bearing steel

Brand SKF
01291075
EAN 7316577010438
Supplier number SKF HK 2212

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller bearing?: The bearing has an inside diameter of 22 mm, an outside diameter of 28 mm, and a width of 12 mm.
Does this drawn cup needle roller bearing include an inner ring?: No, this model comes without an inner ring and runs directly on a hardened and ground shaft.
Is this SKF needle roller bearing sealed?: No, this bearing has an open-ended design without integrated seals.
What material is the cage made of?: The cage of this drawn cup needle roller bearing is made of sheet steel.
How many needle rows does the SKF HK 2212 feature?: This bearing features 1 row of rollers, providing high radial load capacity in compact spaces.
