What are the dimensions of this drawn cup needle roller bearing?

The SKF HK 2020 has an inside diameter of 20 mm, an outside diameter of 26 mm, and a width of 20 mm.

Does this needle roller bearing come with an inner ring?

No, this bearing is supplied without an inner ring. The shaft serves directly as the raceway when hardened and ground.

Is the SKF HK 2020 equipped with seals?

No, this model has open ends and comes without seals.

What material is used for the cage?

The cage of this single-row needle roller bearing is made of sheet steel.

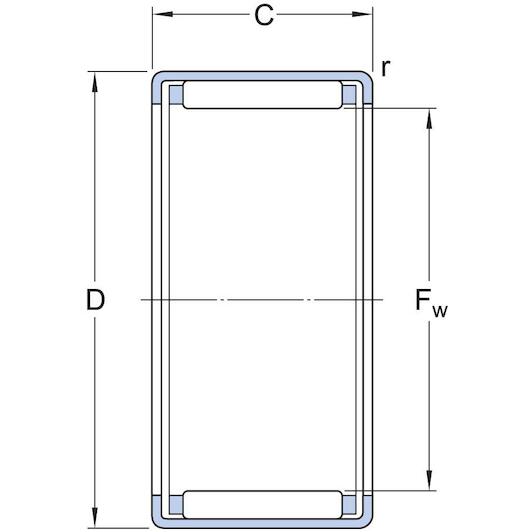

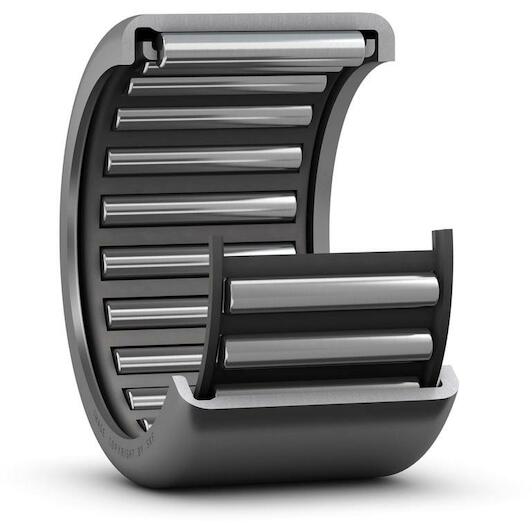

SKF HK 2020 single-row needle roller bearing without inner ring 20 x 26 x 20 mm

Supplier number: SKF HK 2020 | EAN 7316577010421

Recommended Retail Price €18.40

8.95 tax incl.

€7.40 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 08/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Maximum load capacity in minimal space

Practical benefits

High radial load rating: With its dense complement of needle rollers, the Skf needle bearing carries high radial loads with ease.
Ultra compact cross section: You save critical assembly space in tight housings thanks to the drawn thin-walled outer ring.
Simple interference mounting: The tight press fit into the housing bore allows you to secure the unit without retaining rings.

In a nutshell

The right choise for

With the Skf hk 2020 drawn cup needle roller bearing, you achieve high load-carrying capacity in compact mechanical assemblies. Featuring dimensions of 20 x 26 x 20 mm and a thin-walled outer ring, it saves critical space and weight in gearboxes, transmissions, and hydraulic pumps. The dense complement of needle rollers held in a sheet steel cage reliably supports heavy radial forces. Supplied without an inner ring or seals, this single-row bearing runs directly on a hardened and ground shaft. Its tight press fit secures the open cup firmly in the housing bore without retaining rings, keeping your industrial drive systems running smoothly.

Product information FAQ

€8.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 20 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 26 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 20 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 26 mm
Basic static load rating: 26.5
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Lubricant: None
Bore diameter of needle roller complement: 20
Relubrication feature: Without
Reference speed: 12000
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 15.1
Outer ring type: Drawn cup with open ends
Limiting speed: 14000
Coating: Without
Outer diameter: 26
Material, bearing: Bearing steel

Brand SKF
01290651
EAN 7316577010421
Supplier number SKF HK 2020

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this drawn cup needle roller bearing?: The SKF HK 2020 has an inside diameter of 20 mm, an outside diameter of 26 mm, and a width of 20 mm.
Does this needle roller bearing come with an inner ring?: No, this bearing is supplied without an inner ring. The shaft serves directly as the raceway when hardened and ground.
Is the SKF HK 2020 equipped with seals?: No, this model has open ends and comes without seals.
What material is used for the cage?: The cage of this single-row needle roller bearing is made of sheet steel.
