Does this drawn cup needle roller bearing include an inner ring?

No, this bearing is supplied without an inner ring and runs directly on a hardened and ground shaft.

Is the SKF HK 1816 fitted with seals?

No, this model has open ends and comes without integral seals.

What material is the cage made of?

The cage of this single-row drawn cup needle roller bearing is made of sheet steel.

What is a drawn cup bearing with open ends used for?

It is used in compact arrangements requiring high radial load capacity where the shaft passes through.

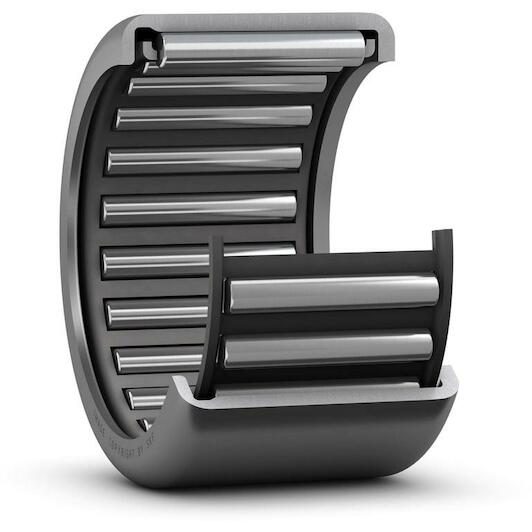

SKF HK 1816 Single-row needle roller bearing without inner ring 18 x 24 x 16 mm

Supplier number: SKF HK 1816 | EAN 7316577010384

1 review(s)

Recommended Retail Price €16.03

7.80 tax incl.

€6.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact support with Skf HK 1816

Practical benefits

Minimal cross sectional height: You fit high-capacity bearings into tight housing spaces thanks to the ultra-compact drawn cup design.
High radial load capacity: Because of the large roller count, you achieve high radial stiffness and dependable load bearing.
Economical open end design: You assemble shafts directly inside the open-ended cup for a cost-effective and streamlined bearing solution.

In a nutshell

The right choise for

With the Skf hk 1816 drawn cup needle roller bearing, you achieve dependable and compact shaft support in assemblies with minimal radial space. This single-row bearing without an inner ring features an inside diameter of 18 mm, an outside diameter of 24 mm, and a width of 16 mm. Thanks to the open-ended design, you mount the bearing directly onto a hardened and ground shaft. The sturdy sheet steel cage retains a high count of needle rollers to deliver high radial load capacity and stiffness. This allows you to reduce rotational friction effectively across gearboxes, power tools, and industrial drives without adding unnecessary weight.

Product information FAQ Reviews

€7.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 18 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 24 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 18 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 24 mm
Basic static load rating: 17.6
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Lubricant: None
Bore diameter of needle roller complement: 18
Relubrication feature: Without
Reference speed: 13000
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 11.2
Outer ring type: Drawn cup with open ends
Limiting speed: 15000
Coating: Without
Outer diameter: 24
Material, bearing: Bearing steel

Brand SKF
01290609
EAN 7316577010384
Supplier number SKF HK 1816

Frequently asked questions about this product

Answered by specialists

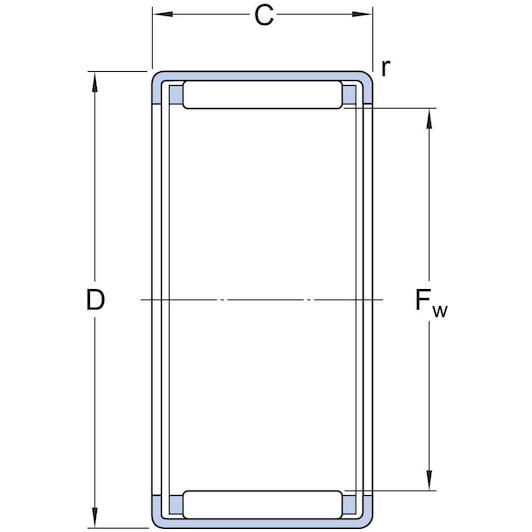

What are the dimensions of this needle roller bearing?: The bearing has an inside diameter of 18 mm, an outside diameter of 24 mm, and a width of 16 mm.
Does this drawn cup needle roller bearing include an inner ring?: No, this bearing is supplied without an inner ring and runs directly on a hardened and ground shaft.
Is the SKF HK 1816 fitted with seals?: No, this model has open ends and comes without integral seals.
What material is the cage made of?: The cage of this single-row drawn cup needle roller bearing is made of sheet steel.
What is a drawn cup bearing with open ends used for?: It is used in compact arrangements requiring high radial load capacity where the shaft passes through.
