What are the dimensions of this needle roller bearing?

The drawn cup needle roller bearing has a 16 mm inside diameter, 22 mm outside diameter, and 22 mm width.

Does this needle roller bearing include an inner ring?

No, this bearing is supplied without an inner ring and uses a hardened shaft directly as the raceway.

How many roller rows does the SKF HK 1622 have?

This model features two rows of needle rollers with a sheet steel cage for high load capacity.

Does this bearing come with integrated seals?

No, this is an open-ended drawn cup design without seals.

Where is a drawn cup needle roller bearing typically used?

It is designed for space-saving, compact assemblies requiring high radial load capacity and stiffness.

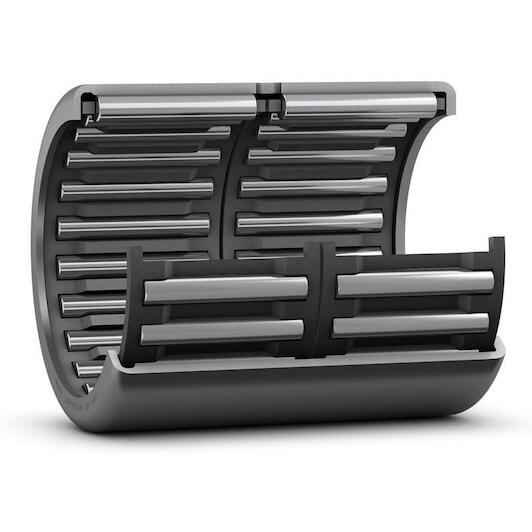

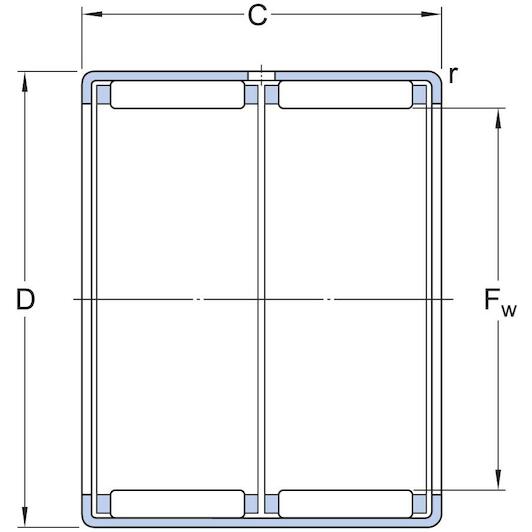

SKF HK 1622 double-row needle roller bearing without inner ring 16 x 22 x 22 mm

Supplier number: SKF HK 1622 | EAN 7316577113290

Recommended Retail Price €19.58

9.60 tax incl.

€7.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact strength with Skf bearings

Practical benefits

High radial load capacity: The double-row needle design allows you to support heavy radial loads reliably in demanding machinery.
Space saving compact design: Operating without an inner ring lets you save valuable space by using the hardened shaft as raceway.
Durable sheet steel cage: The strong pressed steel cage guides the rollers precisely to minimize friction and wear during operation.

In a nutshell

The right choise for

With the Skf hk 1622 drawn cup needle roller bearing, you achieve a dependable and extremely compact bearing assembly in restricted design spaces. Thanks to its double-row needle roller design, you easily support heavy radial loads across machine building and transmission systems. Operating without an inner ring allows you to use your 16 mm hardened shaft directly as the raceway, saving valuable space and overall weight. The durable sheet steel cage ensures precise roller guidance to reduce friction and prevent wear on rotating components. Measuring 16 x 22 x 22 mm, this open-ended needle bearing delivers high load capacity and rigidity for demanding shaft applications.

Product information FAQ

€9.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 16 mm
Width: 22 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 22 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 16 mm
Width: 22 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 22 mm
Basic static load rating: 19.6
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Lubricant: None
Bore diameter of needle roller complement: 16
Relubrication feature: With
Reference speed: 14000
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 12.8
Outer ring type: Drawn cup with open ends
Limiting speed: 16000
Coating: Without
Outer diameter: 22
Material, bearing: Bearing steel

Brand SKF
01290133
EAN 7316577113290
Supplier number SKF HK 1622

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller bearing?: The drawn cup needle roller bearing has a 16 mm inside diameter, 22 mm outside diameter, and 22 mm width.
Does this needle roller bearing include an inner ring?: No, this bearing is supplied without an inner ring and uses a hardened shaft directly as the raceway.
How many roller rows does the SKF HK 1622 have?: This model features two rows of needle rollers with a sheet steel cage for high load capacity.
Does this bearing come with integrated seals?: No, this is an open-ended drawn cup design without seals.
Where is a drawn cup needle roller bearing typically used?: It is designed for space-saving, compact assemblies requiring high radial load capacity and stiffness.
