What are the dimensions of this drawn cup needle bearing?

The bearing has an inside diameter of 12 mm, an outside diameter of 18 mm, and a width of 14 mm.

Does this bearing come with an inner ring?

No, this single-row needle roller bearing is supplied without an inner ring to run directly on the shaft.

What kind of seal does the SKF HK 1214 RS feature?

It features an integral contact rubber seal on one side to retain grease and keep out dirt.

What materials are the cage and cup made of?

The cage is made of sheet steel and the drawn outer ring is made of bearing steel.

Is the bearing pre-lubricated?

Yes, this sealed needle roller bearing is supplied with an initial grease fill.

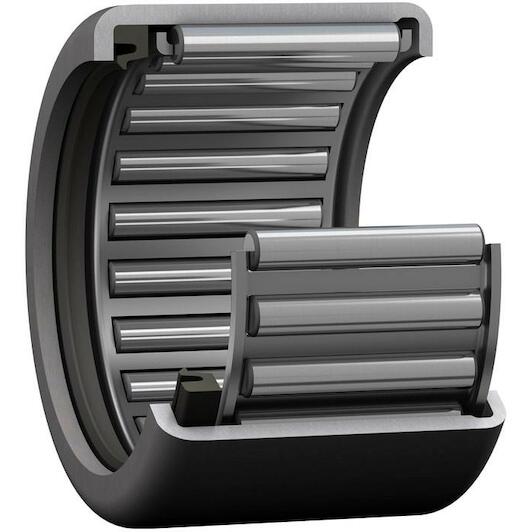

SKF HK 1214 RS single-row needle roller bearing without inner ring 12 x 18 x 14 mm

Supplier number: SKF HK 1214 RS | EAN 7316577301635

Recommended Retail Price €17.50

8.60 tax incl.

€7.11 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact needle bearing with integrated seal

Practical benefits

High radial load capacity: With the Skf HK 1214 RS, you achieve exceptional radial stiffness and strength in extremely confined installation spaces.
Built-in rubber contact seal: The integrated single-sided seal retains lubricant effectively while protecting your assembly against harmful dust and external contaminants.
Simple interference fit mounting: The thin-walled drawn cup design allows you to secure the bearing firmly in the housing bore without retaining rings.

In a nutshell

The right choise for

With the Skf hk 1214 RS, you gain high radial load carrying capacity and stiffness within an extremely compact cross-section. Measuring 12 x 18 x 14 mm, this single-row drawn cup needle roller bearing without an inner ring mounts securely with a simple press-fit into the housing bore, eliminating the need for retaining rings. Its integrated single-sided rubber contact seal keeps the factory-supplied grease fill inside while shielding your assembly against dust and external contaminants. It is the ideal solution for machine building, automotive transmissions, and electric drives with tight radial space constraints.

Product information FAQ

€8.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Rubber
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 18 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. Sealed bearings are delivered with an initial grease fill.

High radial load carrying capacity
High stiffness
Very low cross-sectional height
Sealed for increased reliability

Documents

⤓ Technical data sheet PDF

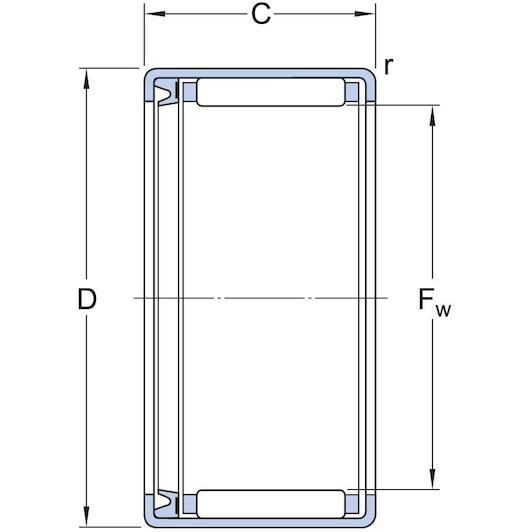

All Features

Inner diameter: 12 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Rubber
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 18 mm
Basic static load rating: 7.35
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Sealing type: Contact
Bore diameter of needle roller complement: 12
Relubrication feature: Without
Lubricant: Grease
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Seal on one side
Basic dynamic load rating: 6.27
Outer ring type: Drawn cup with open ends
Limiting speed: 10000
Coating: Without
Outer diameter: 18
Material, bearing: Bearing steel

Brand SKF
01291084
EAN 7316577301635
Supplier number SKF HK 1214 RS

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this drawn cup needle bearing?: The bearing has an inside diameter of 12 mm, an outside diameter of 18 mm, and a width of 14 mm.
Does this bearing come with an inner ring?: No, this single-row needle roller bearing is supplied without an inner ring to run directly on the shaft.
What kind of seal does the SKF HK 1214 RS feature?: It features an integral contact rubber seal on one side to retain grease and keep out dirt.
What materials are the cage and cup made of?: The cage is made of sheet steel and the drawn outer ring is made of bearing steel.
Is the bearing pre-lubricated?: Yes, this sealed needle roller bearing is supplied with an initial grease fill.
