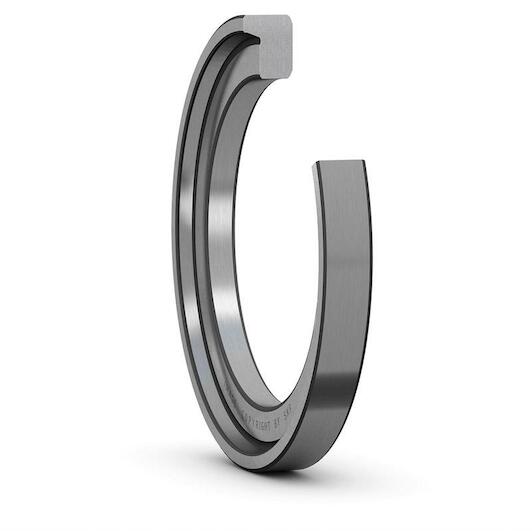

SKF HJ 310 EC angle ring for single-row cylindrical roller bearing (L-shaped thrust rings) 50 x 71.4 mm

SKF

Supplier number: SKF HJ 310 EC | EAN 7316577033697

This product has been discontinued.

↓ Documents (1) ✆ Talk to a specialist

Product information

Key features according to our expert

Inner diameter: 50 mm
Outer diameter: 71,4 mm
Width: 8 mm

Product description:

Angle rings are intended to:
- For NU type cylindrical roller bearings, locking up the shaft in one direction
- For cylindrical roller bearings of type NJ, to trap the shaft in both directions
To achieve a locating bearing design, an adjusting ring of the same width must be used on both sides of the bearing

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Outer diameter: 71,4 mm
Width: 8 mm
Outer diameter: 71.4 mm
Material: Bearing steel
Coating: Without
Bore diameter: 50 mm
Width in bore: 8 mm

Brand SKF
01070230
EAN 7316577033697
Supplier number SKF HJ 310 EC
