SKF

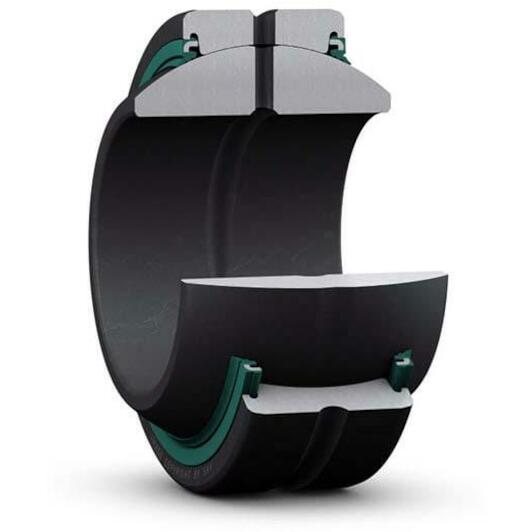

SKF GEH 30 ESX-2LS Explorer radial spherical plain bearing, sealed, 30 mm

Recommended Retail Price €134.04
66.20 tax incl.
€54.71 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

These radial spherical plain bearings have an SKF Explorer steel/steel sliding contact surface combination. They are initially lubricated and have a triple-lip, heavy-duty contact seal on both sides. Compared to conventional steel/steel bearings, they have increased dynamic load ratings. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.

  • Designed for radial and combined radial and axial loads
  • Long service life
  • Virtually maintenance-free
  • Suitable for heavy static or impact loads
  • Enable larger tilt angles
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 32 mm
  • Seal (bearing): Double-sided sealed
  • Radial clearance: CN (Normal)
  • Maintenance free: Yes
  • Outer diameter: 55 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316575579715
  • Supplier number: SKF GEH 30 ESX-2LS
Inner diameter
30 mm
Width
32 mm
Seal (bearing)
Double-sided sealed
Radial clearance
CN (Normal)
Maintenance free
Yes
Outer diameter
55 mm
Material, inner ring
Bearing steel
Maintenance
Virtually maintenance-free
Material, outer ring
Bearing steel
Sealing type
Triple-lip
Width, outer ring
20
Skf performance class
SKF Explorer
Relubrication feature
With
Basic static load rating
400
Radial internal clearance
CN
Bore diameter
30
Sealing
Seal on both sides
Width, inner ring
32
Basic dynamic load rating
120
Outside diameter
55
Sliding contact surface combination
Steel/steel, SKF Explorer
