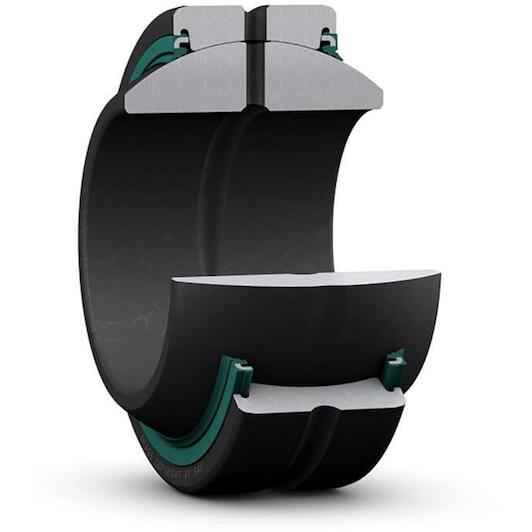

SKF GEH 25 ES-2RS joint bearing 25 x 47 x 28 mm

Supplier number: SKF GEH 25 ES-2RS | EAN 7316577092359

Recommended Retail Price €93.56

46.20 tax incl.

€38.18 excl. VAT (incl. all environmental contributions)

On order: delivered from 02/10/2026

Ordered before 20:00 - delivered as of 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy load support with Skf GEH 25 ES-2RS

Practical benefits

High radial and axial capacity: You reliably accommodate heavy static and alternating loads thanks to the wider inner ring and durable steel sliding contacts.
Double contact seals against debris: The contact seals on both sides protect the internal components from dust, dirt, and moisture during tough operations.
Simple relubrication for long service: You can easily regrease the bearing via the lubrication holes and annular groove to maintain peak operational reliability.

In a nutshell

The right choise for

With the Skf geh 25 ES-2RS radial spherical plain bearing, you ensure smooth pivoting and tilting motion in demanding machinery. This robust 25 x 47 x 28 mm bearing reliably compensates for angular misalignment and shaft deflection. Featuring a wider inner ring and larger outside diameter, it accommodates heavy static and alternating loads in applications like hydraulic cylinders or agricultural equipment. The dual 2RS contact seals on both sides protect the internal sliding surfaces against dust, dirt, and moisture. Simple relubrication via the integrated lubrication holes and groove keeps your assemblies running smoothly for an extended service life.

Product information FAQ

€46.20

tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 28 mm
Sealing (bearing): Sealed on both sides
Radial clearance: CN (Normal)
Maintenance free: Nein
Outer diameter: 47 mm

Product description

These radial spherical plain bearings have a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.

Designed for radial and combined radial and axial loads
Long service life
Minimal maintenance
Suitable for heavy static, alternating or impact loads
Enable larger tilt angles

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 28 mm
Sealing (bearing): Sealed on both sides
Radial clearance: CN (Normal)
Maintenance free: Nein
Outer diameter: 47 mm
Material, inner ring: Bearing steel
Maintenance: Relubrication required
Material, outer ring: Bearing steel
Sealing type: Double-lip
Width, outer ring: 18
Relubrication feature: With
Basic static load rating: 310
Radial internal clearance: CN
Basic dynamic load rating: 62
Sealing: Seal on both sides
Width, inner ring: 28
Bore diameter: 25
Outside diameter: 47
Sliding contact surface combination: Steel/steel, standard

Brand SKF
01390352
EAN 7316577092359
Supplier number SKF GEH 25 ES-2RS

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this spherical plain bearing?: The bearing has a 25 mm bore diameter, a 47 mm outside diameter, and a width of 28 mm.
Is this SKF spherical plain bearing maintenance-free?: No, this steel/steel bearing requires regular relubrication through the lubrication holes and groove.
What sealing does this bearing feature?: It is equipped with a 2RS double-lip contact seal on both sides to protect against dust and moisture.
What radial internal clearance does this bearing have?: This spherical plain bearing features standard CN (normal) radial internal clearance.
How does the GEH series differ from the standard GE series?: The GEH series has a wider inner ring and larger outside diameter, allowing for higher load ratings and larger tilt angles.
