SKF

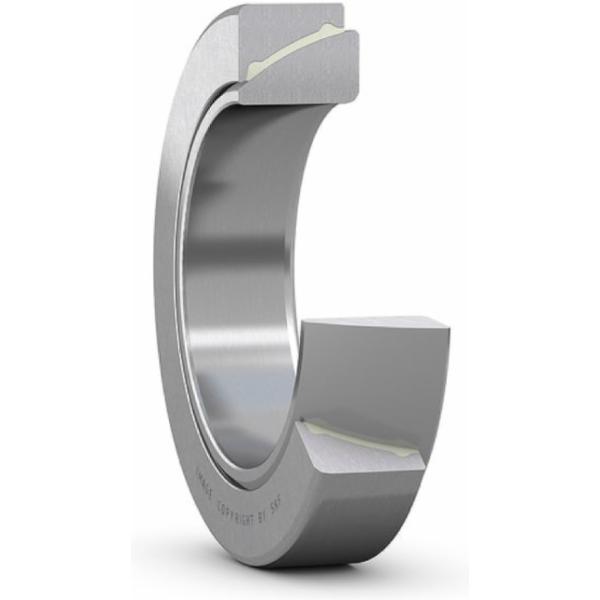

SKF GAC 120 F angular contact spherical plain bearing 120 x 180 x 38 mm

This article is not available

Product description:

  • Ball joint bearings are standard ready-to-use mechanical components, suitable for multi directional, self-aligning movements
  • The inner ring has a spherical convex outer diameter, while the outer ring has a correspondingly concave inner diameter
  • The load on these bearings can be static but also oscillating or vibrating at relatively low frequencies
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 38 mm
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Outer diameter: 180 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570682038
  • Supplier number: SKF GAC 120 F
Inner diameter
120 mm
Width
38 mm
Seal (bearing)
Without seal
Maintenance free
Yes
Outer diameter
180 mm
Width, inner ring
38 mm
Width, outer ring
37 mm
Relubrication feature
Without
Basic static load rating
415 kN
Maintenance
Maintenance-free
Material, inner ring
Bearing steel
Sealing
Without
Basic dynamic load rating
260 kN
Sliding contact surface combination
Steel/PTFE FRP
Bore diameter
120 mm
Outside diameter
180 mm
Material, outer ring
Bearing steel
