SKF

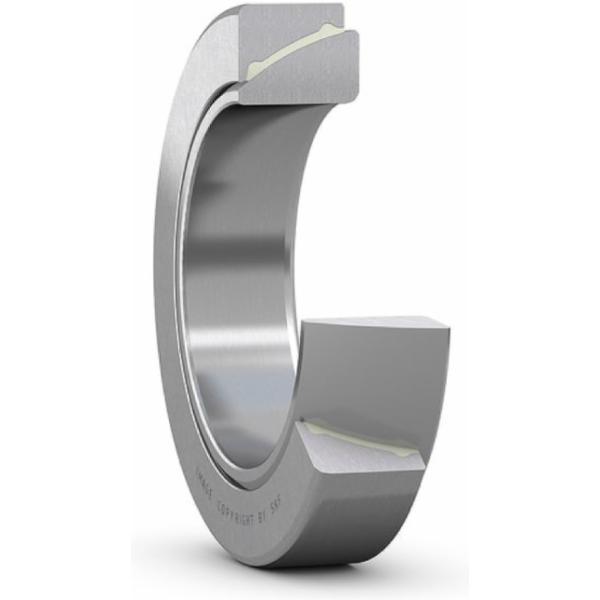

SKF GAC 110 F angular contact spherical plain bearing 110 x 170 x 38 mm

This article is not available

Product description:

  • Ball joint bearings are standard ready-to-use mechanical components, suitable for multi directional, self-aligning movements
  • The inner ring has a spherical convex outer diameter, while the outer ring has a correspondingly concave inner diameter
  • The load on these bearings can be static but also oscillating or vibrating at relatively low frequencies
Key features according to our expert
  • Inner diameter: 110 mm
  • Width: 38 mm
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577027115
  • Supplier number: SKF GAC 110 F
Inner diameter
110 mm
Width
38 mm
Seal (bearing)
Without seal
Maintenance free
Yes
Outer diameter
170 mm
Width, inner ring
38 mm
Width, outer ring
34 mm
Relubrication feature
Without
Basic static load rating
345 kN
Maintenance
Maintenance-free
Material, inner ring
Bearing steel
Sealing
Without
Basic dynamic load rating
220 kN
Sliding contact surface combination
Steel/PTFE FRP
Bore diameter
110 mm
Outside diameter
170 mm
Material, outer ring
Bearing steel
