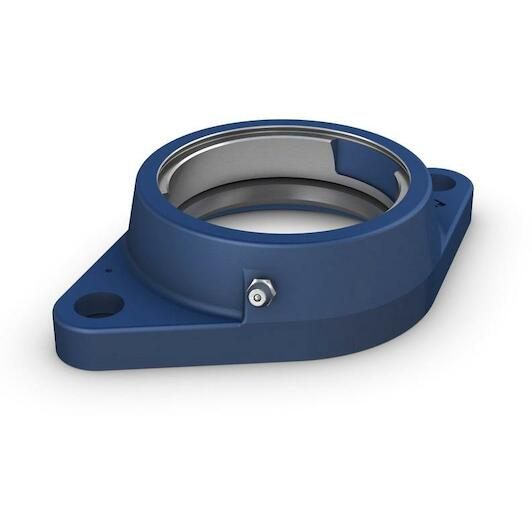

SKF FYTJ 509 bearing housing with oval flange for insert bearings, cast iron, JIS

Show more features

Seat diameter

85 mm

Material (bearing housing)

Cast iron

Shape (bearing housing)

Oval

Fastening bolt hole type

Plain

Housing type

Flanged

Flanged housing type

Oval

Number of bolt holes for fasteners

2

Material, housing

Cast iron

Centre distance between bolt holes

148 mm

Grease fitting

With

Housing overall width

38 mm

Relubrication hole

With

Coating

Without

Spherical seating diameter

85 mm
