SKF

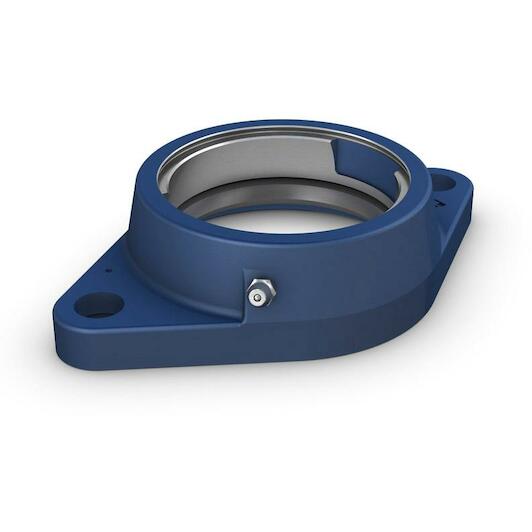

SKF FYTJ 506 bearing housing with oval flange for insert bearings, cast iron, JIS

Recommended Retail Price €54.32
26.80 tax incl.
€22.15 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

These oval flanged housings for insert bearings are compliant with Japanese Industrial Standards (JIS). They are made of grey cast iron and can be bolted with two bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Accommodate relatively heavy loads
Key features according to our expert
  • Seat diameter: 62 mm
  • Material (bearing housing): Cast iron
  • Shape (bearing housing): Oval
Specifications / All features
  • Brand: SKF
  • EAN: 7316571141077
  • Supplier number: SKF FYTJ 506
Seat diameter
62 mm
Material (bearing housing)
Cast iron
Shape (bearing housing)
Oval
Fastening bolt hole type
Plain
Grease fitting
With
Spherical seating diameter
62
Housing type
Flanged
Flanged housing type
Oval
Number of bolt holes for fasteners
2
Centre distance between bolt holes
117
Housing overall width
30.5
Relubrication hole
With
Coating
Without
Material, housing
Cast iron
