SKF

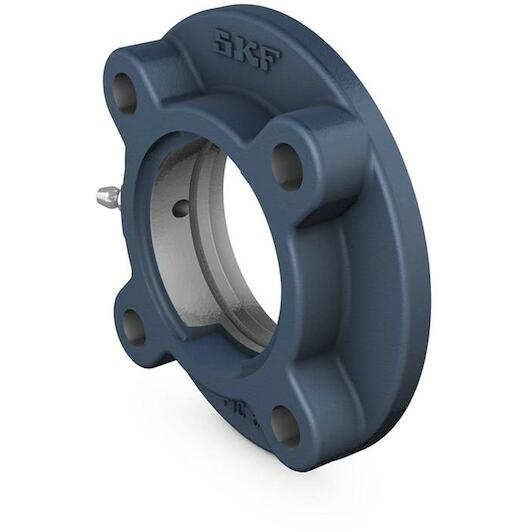

SKF FYC 504 bearing housing with round flange for insert bearing, cast iron

Recommended Retail Price €55.37
27.40 tax incl.
€22.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

These round flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Resist high levels of contamination
  • Accommodate relatively heavy loads
Key features according to our expert
  • Seat diameter: 47 mm
  • Material (bearing housing): Cast iron
  • Shape (bearing housing): Round
Specifications / All features
  • Brand: SKF
  • EAN: 7316570442014
  • Supplier number: SKF FYC 504
Seat diameter
47 mm
Material (bearing housing)
Cast iron
Shape (bearing housing)
Round
Fastening bolt hole type
Plain
Grease fitting
With
Spherical seating diameter
47
Housing type
Flanged
Flanged housing type
Round
Number of bolt holes for fasteners
4
Pitch diameter of bolt holes of round and triangle flange type housing
78
Housing overall width
25.5
Relubrication hole
With
Coating
Without
Material, housing
Cast iron
