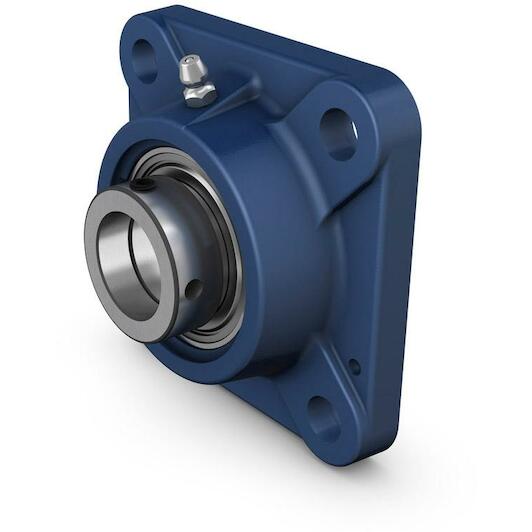

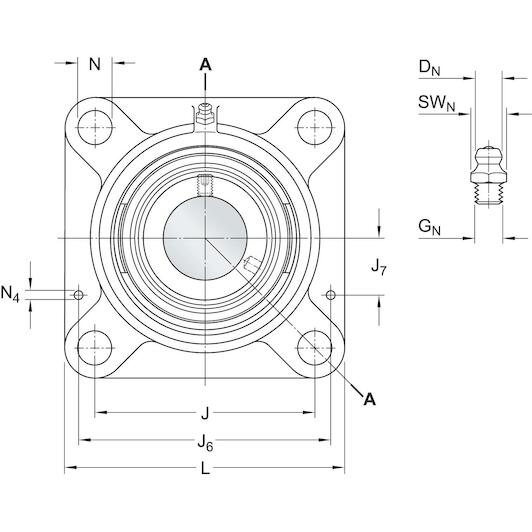

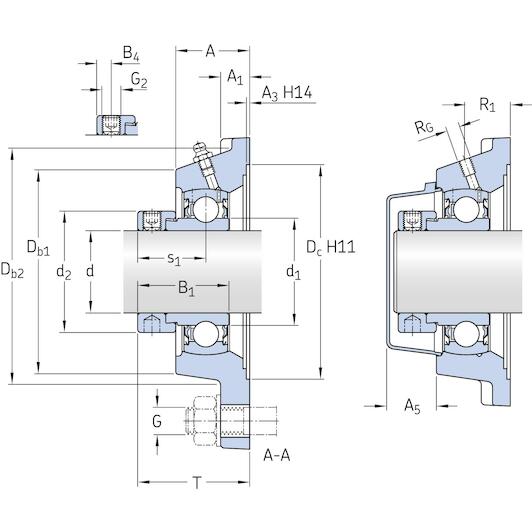

SKF FY 20 FM Y ball bearing unit with flange square, d 20 mm, A 29.5 mm, J 63.5 mm

SKF
Supplier number: SKF FY 20 FM | EAN 7316570168563
Recommended Retail Price €97.22
47.95 tax incl.
€39.63 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€47.95
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 20 mm
  • Split: No
  • Material (bearing housing): Stainless steel
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Square

Product description

These square flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with a narrow inner ring and eccentric locking, and are intended primarily for use in applications where the direction of rotation is constant. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter
20 mm
Split
No
Material (bearing housing)
Stainless steel
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Square
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal on both sides
Material, bearing
Bearing steel
Note
Limiting speed with shaft tolerance h6
Flanged housing type
Square
Housing type
Flanged
Application
For material handling applications
Basic static load rating
6.55
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Grease fitting
With
Material, housing
Cast iron
Number of bolt holes for fasteners
4
Attachment bolt diameter
10
Bearing width, total
30.5
Basic dynamic load rating
12.7
Coating
Without
Housing overall width
29.5
Retaining feature, inner ring
Eccentric collar
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
8500
Width, total
43
Sealing, unit
Optional end cover
Centre distance between bolt holes
63.5
Set screw
M6x0.75
  • Brand SKF
  • EAN 7316570168563
  • Supplier number SKF FY 20 FM
