How many locating rings are needed per housing?

This depends on the specific assembly. Typically, two rings are used (one on each side) or one ring installed on the lock nut side.

What material is this locating ring made from?

The SKF FRB 9.5/100 locating ring is made of steel.

SKF FRB 9.5/100 circlip 92 x 100 x 9.5 mm

Supplier number: SKF FRB 9.5/100 | EAN 7316577017451

Recommended Retail Price €17.96

8.80 tax incl.

€7.27 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Secure bearing locating by Skf

Practical benefits

Accurate axial positioning: You securely lock the bearing in the housing when the seat width and bearing width differ.
Exact dimension matching: Designed with a 100 mm outer diameter and 9.5 mm width, the ring fits seamlessly into housings.
Smooth and stable rotation: You eliminate unwanted lateral movement to ensure continuous, reliable mechanical performance.

In a nutshell

The right choise for

With the Skf frb 9.5/100 locating ring, you secure bearings precisely and reliably inside the housing. When the housing seat is wider than the bearing width, this steel locating ring fills the axial clearance to prevent unwanted lateral movement. This eliminates bearing displacement along rotating shafts, ensuring smooth operation and dependable performance across your industrial machinery. Built with an outside diameter of 100 mm, an inside diameter of 92 mm, and a width of 9.5 mm, it fits seamlessly into the housing seat. You easily convert bearing arrangements to a stable locating position for lasting mechanical reliability.

Product information FAQ

€8.80

In stock - tax incl.

Key features according to our expert

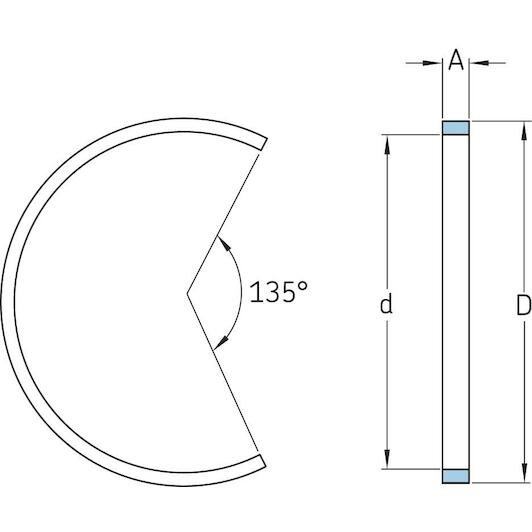

Inner diameter: 92 mm
Outer diameter: 100 mm
Width: 9,5 mm

Product description

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 92 mm
Outer diameter: 100 mm
Width: 9,5 mm
Outer diameter: 100
Inner diameter: 92
Accessory type: Locating ring

Brand SKF
01230041
EAN 7316577017451
Supplier number SKF FRB 9.5/100

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF FRB 9.5/100 locating ring?: It secures a bearing axially inside the housing when the housing seat is wider than the bearing width.
What are the exact dimensions of this locating ring?: The ring has an outside diameter of 100 mm, an inside diameter of 92 mm, and a width of 9.5 mm.
How many locating rings are needed per housing?: This depends on the specific assembly. Typically, two rings are used (one on each side) or one ring installed on the lock nut side.
What material is this locating ring made from?: The SKF FRB 9.5/100 locating ring is made of steel.
