SKF FRB 6.25/160 circlip 149 x 160 x 6.25 mm

Supplier number: SKF FRB 6.25/160 | EAN 7316577302472

Recommended Retail Price €33.30

16.40 tax incl.

€13.55 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 29/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable axial locating in bearing housings

Practical benefits

Precise axial positioning: You securely lock the bearing in place axially when the housing seat is wider than the bearing.
Accurate housing fit: The Skf FRB 6.25/160 locating ring prevents unwanted axial movement inside split pillow block housings.
Robust steel construction: You benefit from durable, rigid support that maintains dimensional stability under continuous industrial loads.

In a nutshell

The right choise for

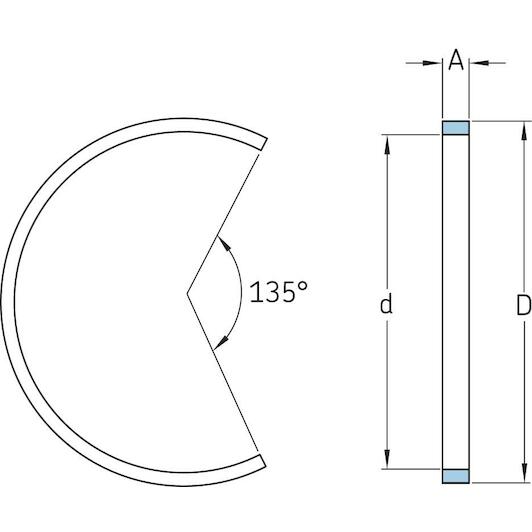

With the Skf frb 6.25/160 locating ring, you secure bearings accurately and reliably in split pillow block housings. When the bearing seat in the housing is wider than the bearing width, this robust steel ring prevents axial movement of the outer ring. Featuring an outside diameter of 160 mm, an inside diameter of 149 mm, and a width of 6.25 mm, it fits compatible housings such as the snl series. This allows you to easily convert a non-locating arrangement into a rigid locating configuration during maintenance on drive shafts and rotating equipment, protecting the housing seat against unnecessary wear.

Product information FAQ

€16.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 149 mm
Outer diameter: 160 mm
Width: 6,25 mm

Product description

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 149 mm
Outer diameter: 160 mm
Width: 6,25 mm
Outside diameter: 160
Inside diameter: 149
Accessory type: Locating ring

Brand SKF
01231001
EAN 7316577302472
Supplier number SKF FRB 6.25/160

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF FRB 6.25/160 locating ring?: It secures a bearing axially in a housing when the bearing seat is wider than the bearing width.
What are the dimensions of this locating ring?: The ring has an outside diameter of 160 mm, an inside diameter of 149 mm, and a width of 6.25 mm.
How many locating rings are typically needed per housing?: Depending on the specific housing and bearing arrangement, you typically need one or two locating rings per housing.
Which bearing housings is this ring compatible with?: It is designed for compatible SKF bearing housings with a 160 mm seat diameter, such as the SNL series.
