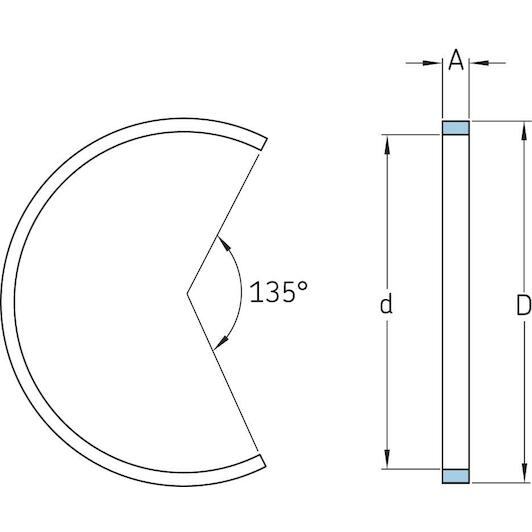

SKF FRB 17.5/160 circlip 149 x 160 x 17.5 mm

Supplier number: SKF FRB 17.5/160 | EAN 7316577081070

Recommended Retail Price €48.18

23.80 tax incl.

€19.67 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable axial bearing location with the Skf FRB 17.5/160

Practical benefits

Precise axial bearing retention: You secure the bearing firmly inside the housing to eliminate unwanted lateral movement under load.
Exact dimensional fit: Sized at 149 x 160 x 17.5 mm, it bridges the width gap in your bearing housing seating accurately.
Robust mechanical stability: The durable steel build ensures smooth running and prevents excessive wear on your rotating assembly.

In a nutshell

The right choise for

With the Skf frb 17.5/160 locating ring, you securely lock a rolling bearing axially inside its housing. When the bearing width differs from the housing seat, this 149 x 160 x 17.5 mm ring accurately bridges the gap to prevent unwanted lateral movement or shaft floating during operation. Ideal for maintenance and overhaul work on industrial housings such as the snl and snh series in conveyor drives, pumps, and fans, it lets you easily establish a stable locating bearing arrangement while reducing wear on your rotating assembly.

Product information FAQ

€23.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 149 mm
Outer diameter: 160 mm
Width: 17,5 mm

Product description

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 149 mm
Outer diameter: 160 mm
Width: 17,5 mm
Outside diameter: 160
Inside diameter: 149
Accessory type: Locating ring

Brand SKF
01230095
EAN 7316577081070
Supplier number SKF FRB 17.5/160

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF FRB 17.5/160 locating ring?: It secures a bearing axially inside the housing when the housing seat and bearing width do not match.
What are the exact dimensions of this locating ring?: The ring has an outer diameter of 160 mm, an inner diameter of 149 mm, and a width of 17.5 mm.
How many locating rings are needed per bearing housing?: Depending on the assembly, typically two locating rings are required per housing to locate the bearing.
What does the designation FRB 17.5/160 signify?: FRB identifies a locating ring, 17.5 specifies the width in mm, and 160 indicates the outer diameter in mm.
