SKF

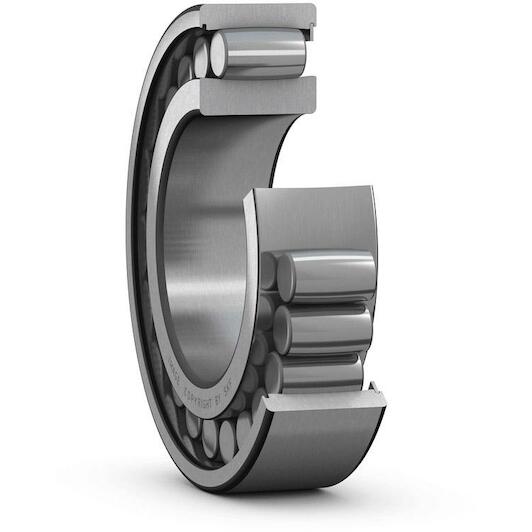

SKF C 4032 V/C3 CARB single-row toroidal roller bearing cylindrical 160 x 240 x 80 mm

Recommended Retail Price €5,119.43
2,534.60 tax incl.
€2,094.71 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Ordered before 20:00 - delivered as of 01/06/2026
  • Free shipping
  • Delivery by DHL

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This full complement bearing, which has a lower speed rating, uses as many rollers as possible, giving it the highest possible load rating.

  • Accommodate misalignment and axial displacement within the bearing
  • Very high radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
Key features according to our expert
  • Inner diameter: 160 mm
  • Width: 80 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 240 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571251127
  • Supplier number: SKF C 4032 V/C3
Inner diameter
160 mm
Width
80 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
240 mm
Basic static load rating
1460
Tolerance class
Normal
Radial internal clearance
C3
Relubrication feature
Without
Skf performance class
SKF Explorer
Lubricant
None
Cage
None (full complement bearing)
Sealing
Without
Locating feature, bearing outer ring
Without
Limiting speed
600
Bore diameter
160
Basic dynamic load rating
915
Outside diameter
240
Candidate for remanufacturing
Yes
