SKF

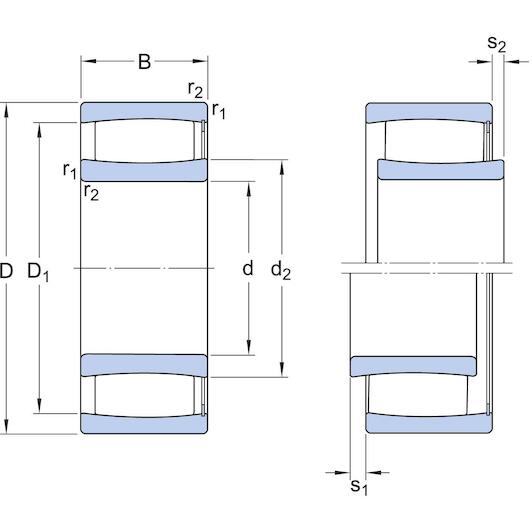

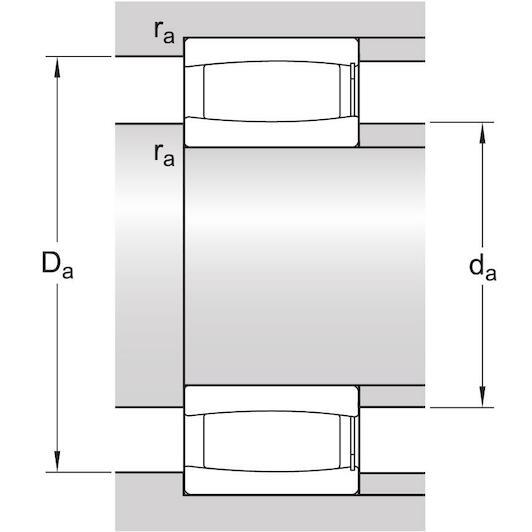

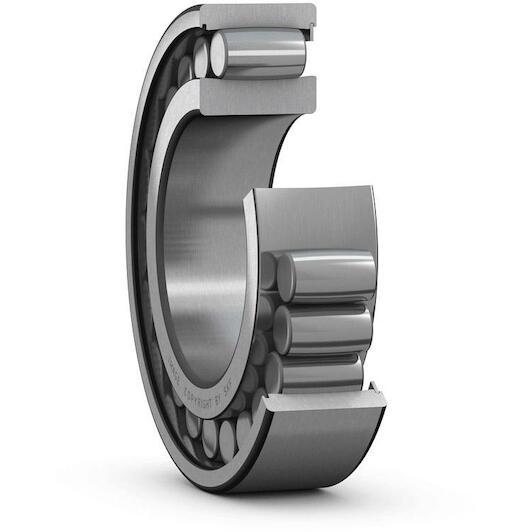

SKF C 4024 V/C3 CARB single-row toroidal roller bearing cylindrical 120 x 180 x 60 mm

Recommended Retail Price €2,969.01
1,469.80 tax incl.
€1,214.71 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This full complement bearing, which has a lower speed rating, uses as many rollers as possible, giving it the highest possible load rating.

  • Accommodate misalignment and axial displacement within the bearing
  • Very high radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 60 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 180 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571224602
  • Supplier number: SKF C 4024 V/C3
Inner diameter
120 mm
Width
60 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
180 mm
Basic static load rating
880
Tolerance class
Normal
Radial internal clearance
C3
Relubrication feature
Without
Skf performance class
SKF Explorer
Lubricant
None
Cage
None (full complement bearing)
Sealing
Without
Locating feature, bearing outer ring
Without
Limiting speed
1100
Bore diameter
120
Basic dynamic load rating
530
Outside diameter
180
Candidate for remanufacturing
Yes
