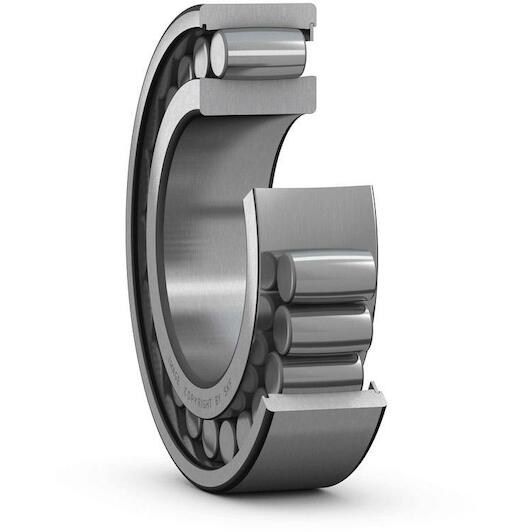

SKF C 4020 V/C3 CARB single-row toroidal roller bearing cylindrical 100 x 150 x 50 mm

SKF
Supplier number: SKF C 4020 V/C3 | EAN 7316571481227
Recommended Retail Price €2,273.60
1,125.60 tax incl.
€930.25 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€1,125.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 100 mm
  • Width: 50 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Not applicable
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 150 mm

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This full complement bearing, which has a lower speed rating, uses as many rollers as possible, giving it the highest possible load rating.

  • Accommodate misalignment and axial displacement within the bearing
  • Very high radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
100 mm
Width
50 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Not applicable
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
150 mm
Basic static load rating
530
Tolerance class
Normal
Radial internal clearance
C3
Relubrication feature
Without
Skf performance class
SKF Explorer
Lubricant
None
Cage
None (full complement bearing)
Sealing
Without
Locating feature, bearing outer ring
Without
Limiting speed
1400
Bore diameter
100
Basic dynamic load rating
355
Outer diameter
150
Candidate for remanufacturing
Yes
  • Brand SKF
  • EAN 7316571481227
  • Supplier number SKF C 4020 V/C3
