skf_c3132kc3
SKF

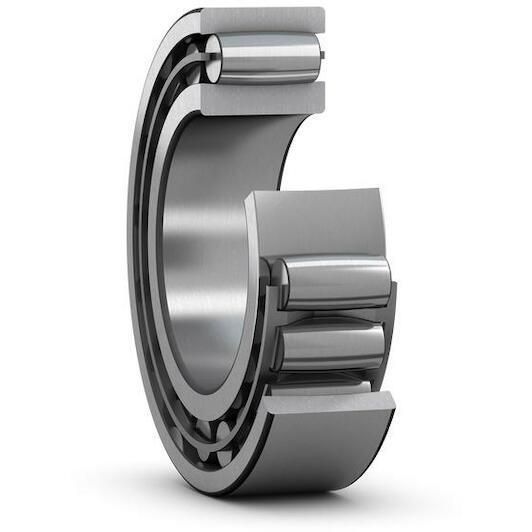

SKF C 3132 K/C3 CARB bearing with tapered 1:12 bore 160 mm

Recommended Retail Price €6,852.91
3,392.80 tax incl.
€2,803.97 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

  • Accommodate misalignment and axial displacement within the bearing
  • High radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 160 mm
  • Width: 86 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Seal (bearing): Without seal
  • Bore type: Tapered
  • Outer diameter: 270 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316574523337
  • Supplier number: SKF C 3132 K/C3
Inner diameter
160 mm
Width
86 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (sheet)
Seal (bearing)
Without seal
Bore type
Tapered
Outer diameter
270 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
1400
Cage
Sheet metal
Reference speed
1900
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Basic dynamic load rating
1000
Sealing
Without
Limiting speed
2600
Bore diameter
160
Outside diameter
270
Candidate for remanufacturing
Yes
