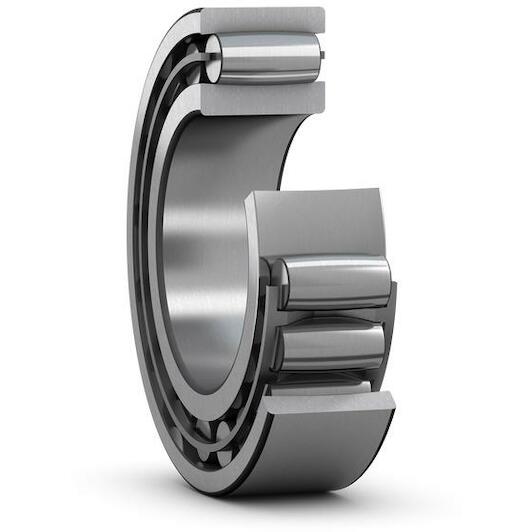

SKF C 2228 K CARB bearing with tapered 1:12 bore 140 mm

Recommended Retail Price €7,168.91
3,549.20 tax incl.
€2,933.22 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

  • Accommodate misalignment and axial displacement within the bearing
  • High radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 140 mm
  • Width: 68 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Seal (bearing): Without seal
  • Bore type: Tapered
  • Outer diameter: 250 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571218465
  • Supplier number: SKF C 2228 K
Inner diameter
140 mm
Width
68 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Seal (bearing)
Without seal
Bore type
Tapered
Outer diameter
250 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
1060
Cage
Sheet metal
Reference speed
2400
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Basic dynamic load rating
830
Sealing
Without
Limiting speed
3200
Bore diameter
140
Outside diameter
250
Candidate for remanufacturing
Yes
