SKF

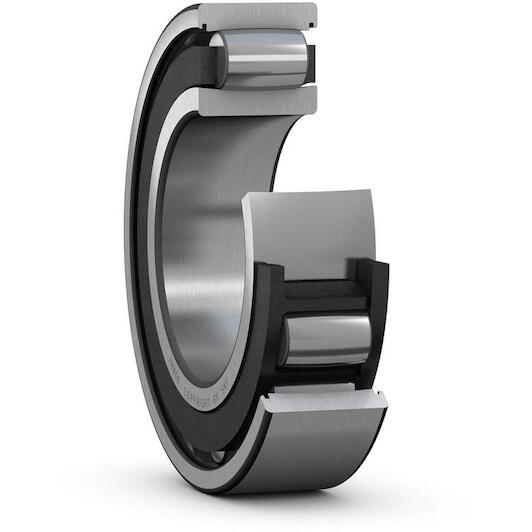

SKF C 2214 TN9 CARB single-row toroidal roller bearing cylindrical 70 x 125 x 31 mm

Recommended Retail Price €708.60
350.80 tax incl.
€289.92 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

  • Accommodate misalignment and axial displacement within the bearing
  • High radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 31 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 125 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571212203
  • Supplier number: SKF C 2214 TN9
Inner diameter
70 mm
Width
31 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
125 mm
Basic static load rating
196
Tolerance class
Normal
Radial internal clearance
CN
Cage
Non-metallic
Relubrication feature
Without
Reference speed
5000
Skf performance class
SKF Explorer
Lubricant
None
Sealing
Without
Locating feature, bearing outer ring
Without
Limiting speed
7000
Bore diameter
70
Basic dynamic load rating
186
Outside diameter
125
