Product description:
- A cylindrical roller (and needle) bearing can, to a limited extent, withstand axial displacements
- But a cylindrical roller bearing cannot accommodate angular displacements
- In turn, a spherical roller bearing is resistant to angular displacements, but cannot accommodate axial displacements

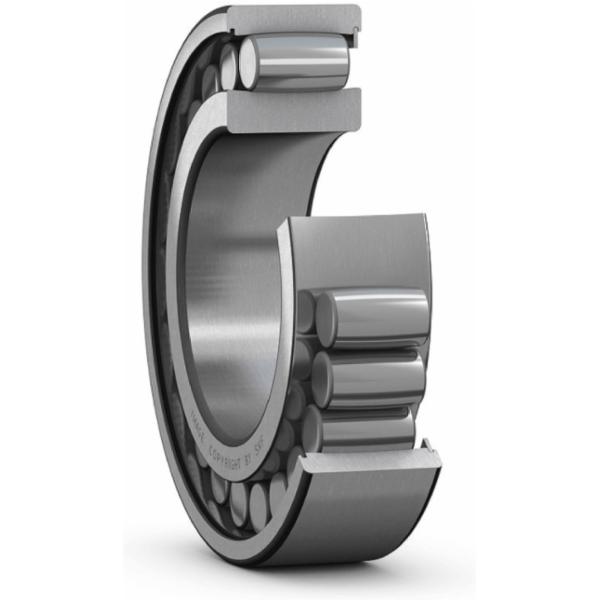

- The carb bearing (SKF - since 1995) combines the advantages of a barrel, a cylindrical roller and a needle roller bearing.
- This bearing not only accommodates angular displacements, but also axial displacements
- An additional advantage is that this patented bearing type has a much higher radial load carrying capacity than bearings of comparable size
Key features according to our expert
-
Inner diameter: 55 mm
-
Width: 25 mm
-
Number of rows: 1
-
Radial clearance: CN (Normal)
-
Material (cage): Not applicable
-
Seal (bearing): Without seal
-
Material (bearing seal): Not applicable
-
Bore type: Cylindrical
-
Outer diameter: 100 mm
Specifications / All features
-
Brand:
SKF
-
01450049
-
EAN:
7316570045345
-
Supplier number:
SKF C 2211 V
- Inner diameter
- 55 mm
- Width
- 25 mm
- Number of rows
- 1
- Radial clearance
- CN (Normal)
- Material (cage)
- Not applicable
- Seal (bearing)
- Without seal
- Material (bearing seal)
- Not applicable
- Bore type
- Cylindrical
- Outer diameter
- 100 mm
- Basic static load rating
- 134 kN
- Tolerance class
- Normal
- Radial internal clearance
- CN
- Cage
- None (full complement bearing)
- Relubrication feature
- Without
- Skf performance class
- SKF Explorer
- Lubricant
- None
- Sealing
- Without
- Locating feature, bearing outer ring
- Without
- Limiting speed
- 3,400 r/min
- Bore diameter
- 55 mm
- Basic dynamic load rating
- 132 kN
- Outside diameter
- 100 mm
