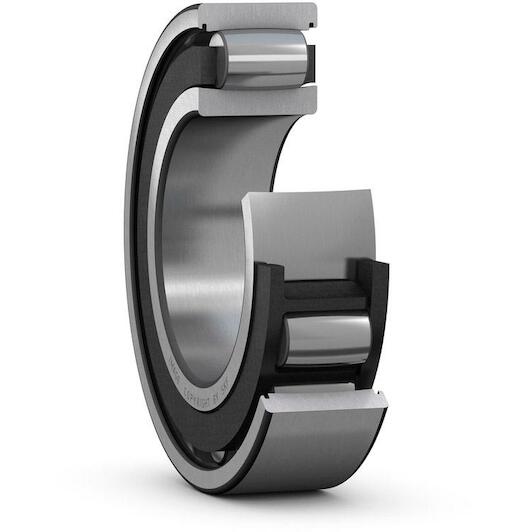

SKF C 2208 TN9 CARB single-row toroidal roller bearing cylindrical 40 x 80 x 23 mm

SKF
Supplier number: SKF C 2208 TN9 | EAN 7316570654226
Recommended Retail Price €390.84
193.40 tax incl.
€159.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€193.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 40 mm
  • Width: 23 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 80 mm

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

  • Accommodate misalignment and axial displacement within the bearing
  • High radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
  • Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
40 mm
Width
23 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
80 mm
Basic static load rating
86.5
Tolerance class
Normal
Radial internal clearance
CN
Cage
Non-metallic
Relubrication feature
Without
Reference speed
8000
Skf performance class
SKF Explorer
Lubricant
None
Sealing
Without
Locating feature, bearing outer ring
Without
Limiting speed
11000
Bore diameter
40
Basic dynamic load rating
90
Outer diameter
80
  • Brand SKF
  • EAN 7316570654226
  • Supplier number SKF C 2208 TN9
