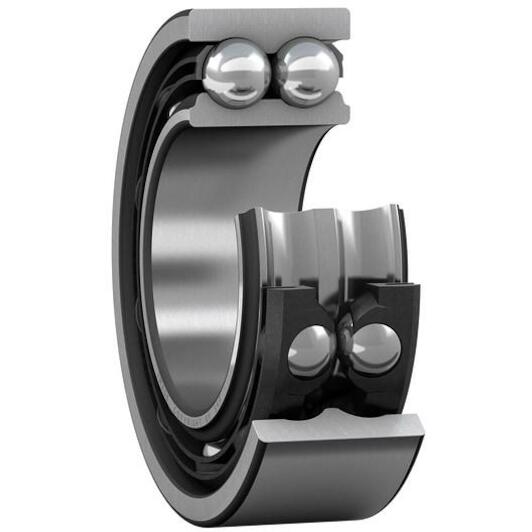

SKF BA2B 636039 A double-row angular contact ball bearing 50 mm

Recommended Retail Price €368.95
182.60 tax incl.
€150.91 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 50 mm
  • Width: 30,2 mm
  • Number of rows: 2
  • Outer diameter: 96 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570988505
  • Supplier number: SKF BA2B 636039 A
Inner diameter
50 mm
Width
30,2 mm
Number of rows
2
Outer diameter
96 mm
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Material, bearing
Bearing steel
Lubricant
None
Reference speed
7000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
55
Contact type
Normal contact (two-point contact)
Ring type
One-piece inner and outer rings
Locating feature, bearing outer ring
Snap ring groove
Sealing
Without
Bore diameter
50
Contact angle
20
Limiting speed
6000
Basic dynamic load rating
67.6
Coating
Without
Outside diameter
96
Universal matching bearing
No
