SKF

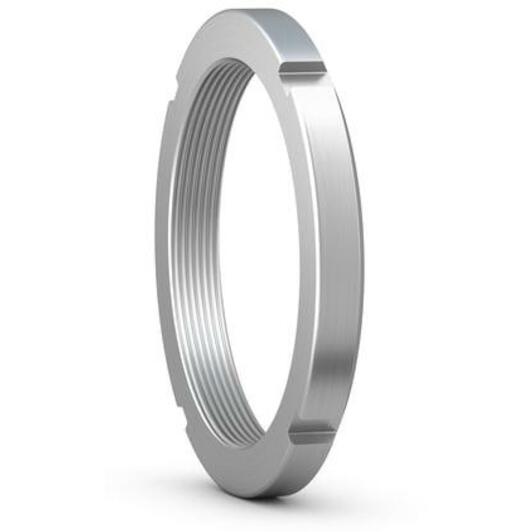

SKF AN 22 locknut with inch thread and lock washer 109.855 mm

Recommended Retail Price €230.46
113.95 tax incl.
€94.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

  • Ordered before 20:00 - delivered as of 20/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

AN lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening. AN lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adaptor sleeve thread
Key features according to our expert
  • Outer diameter: 145,389 mm
  • Width: 20,091 mm
  • Thread dimension: 4,325-12

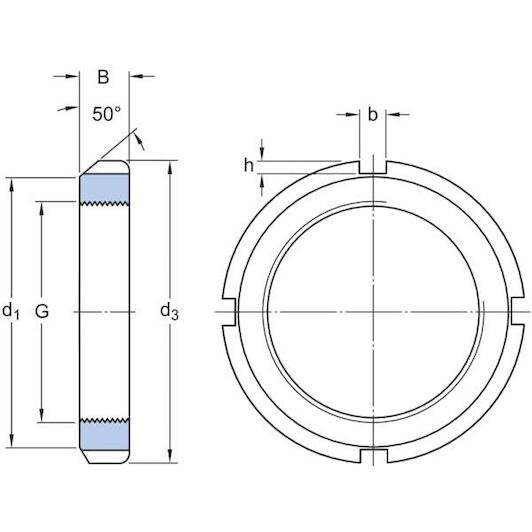

Specifications / All features
  • Brand: SKF
  • EAN: 7316576660467
  • Supplier number: SKF AN 22
Outer diameter
145,389 mm
Width
20,091 mm
Thread dimension
4,325-12
Outside diameter
145.3896
Bore diameter
109.855
Associated mounting tool
HN 21-22
Nut for hydraulic mounting
No
Locking device
Lock washer
Thread designation
4.325-12
