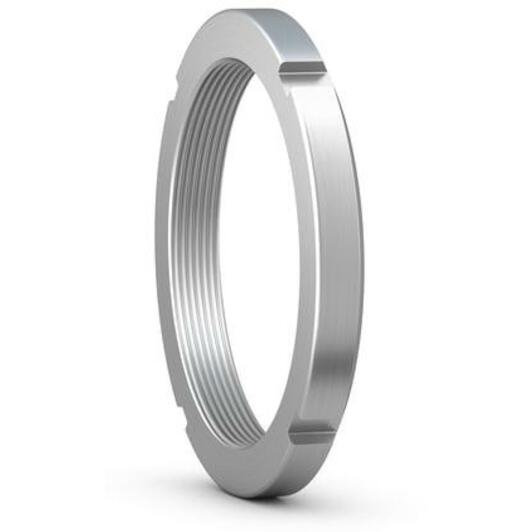

SKF AN 15 locknut with inch thread and lock washer 74.4982 mm

Recommended Retail Price €106.56
52.60 tax incl.
€43.47 excl. VAT (incl. all environmental contributions)
On order: delivered from 13/07/2026
each

The minimum purchase order quantity for the product is 5.

  • Ordered before 20:00 - delivered as of 13/07/2026
  • Free shipping
  • Delivery by DHL

Product description

AN lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening. AN lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adaptor sleeve thread
Key features according to our expert

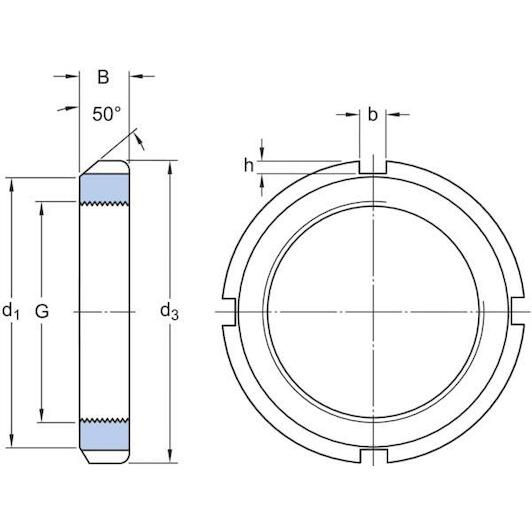

  • Outer diameter: 98,552 mm
  • Width: 15,341 mm
  • Thread designation: 2,933-12
Specifications / All features
  • Brand: SKF
  • EAN: 7316570118995
  • Supplier number: SKF AN 15
Outer diameter
98,552 mm
Width
15,341 mm
Thread designation
2,933-12
Outside diameter
98.552
Bore diameter
74.4982
Associated mounting tool
HN 15
Nut for hydraulic mounting
No
Locking device
Lock washer
