SKF

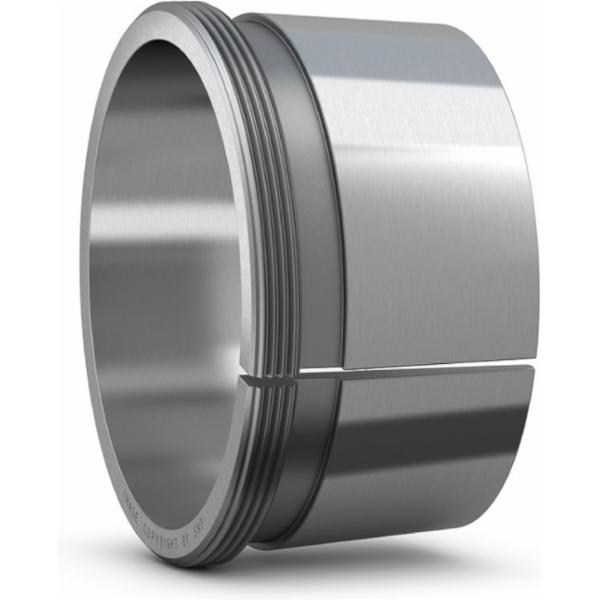

SKF AHX 3124/110 pressure bushing 110xx75mm M130x2

This article is not available

Product description:

  • Thrust bushings are used to mount bearings, with a tapered bore, on cylindrical seats of stepped shafts
  • The bushing is locked axially with a nut or end plate
Key features according to our expert
  • Inner diameter: 110 mm
  • Width: 75 mm
  • Thread nominal size*: M130 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316570535969
  • Supplier number: SKF AHX 3124/110
Inner diameter
110 mm
Width
75 mm
Thread nominal size*
M130 x 2
Bore diameter
110 mm
Taper
1:12
Holes for oil injection
Without
Thread designation
M 130x2
