SKF

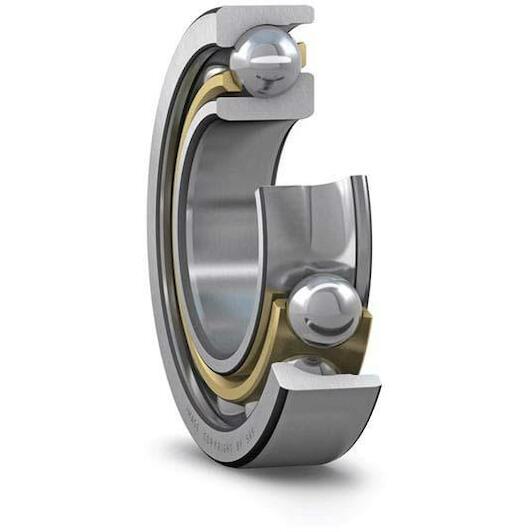

SKF 7338 BCBM single-row angular contact ball bearing 190 mm

Recommended Retail Price €13,806.54
6,835.60 tax incl.
€5,649.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 190 mm
  • Width: 78 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (cage): Brass (solid)
  • Outer diameter: 400 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570270075
  • Supplier number: SKF 7338 BCBM
Inner diameter
190 mm
Width
78 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (cage)
Brass (solid)
Outer diameter
400 mm
Basic static load rating
600
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
2000
Sealing
Without
Cage
Machined brass
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
190
Contact angle
40
Limiting speed
2400
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
442
Coating
Without
Outside diameter
400
Universal matching bearing
Yes
