SKF

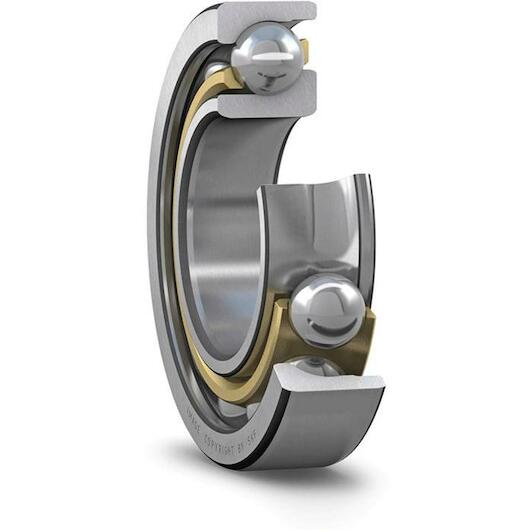

SKF 7320 BEGAM single-row angular contact ball bearing 100 x 215 x 47 mm with contact angle 40°

Recommended Retail Price €2,905.05
1,438.20 tax incl.
€1,188.60 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 47 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 215 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577151339
  • Supplier number: SKF 7320 BEGAM
Inner diameter
100 mm
Width
47 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
215 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
208
Lubricant
None
Relubrication feature
Without
Reference speed
4000
Skf performance class
SKF Explorer
Sealing
Without
Cage
Machined brass
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
100
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
5000
Matched condition (axial clearance/ preload)
Light preload
Basic dynamic load rating
216
Coating
Without
Outside diameter
215
Universal matching bearing
Yes
