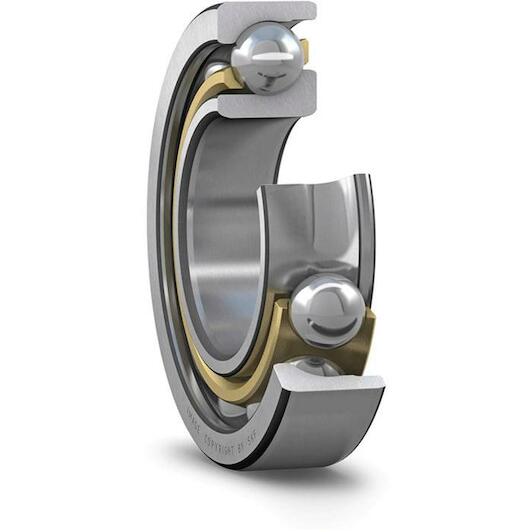

SKF 7319 BEM single-row angular contact ball bearing 95 x 200 x 45 mm with contact angle 40°

Recommended Retail Price €2,319.52
1,148.20 tax incl.
€948.93 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 95 mm
  • Width: 45 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 200 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577151308
  • Supplier number: SKF 7319 BEM
Inner diameter
95 mm
Width
45 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
200 mm
Contact type
Normal contact (two-point contact)
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Reference speed
4300
Basic static load rating
150
Matched arrangement
No
Relubrication feature
Without
Axial internal clearance
Not applicable
Lubricant
None
Cage
Machined brass
Sealing
Without
Contact angle
40
Limiting speed
4800
Bore diameter
95
Basic dynamic load rating
168
Coating
Without
Outside diameter
200
Material, bearing
Bearing steel
