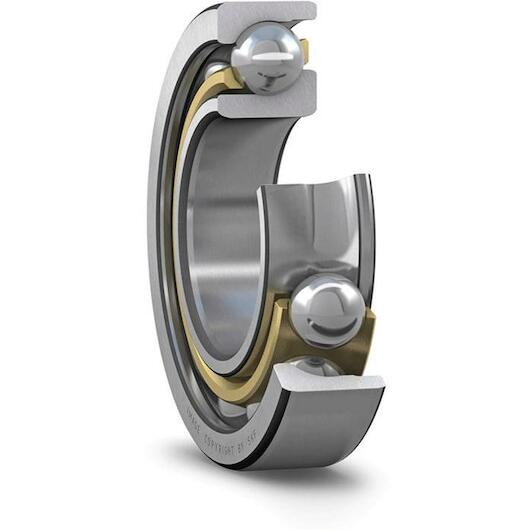

SKF 7313 BECBM single-row angular contact ball bearing 65 x 140 x 33 mm with contact angle 40°

SKF
Supplier number: SKF 7313 BECBM | EAN 7316576650765
Recommended Retail Price €835.25
413.40 tax incl.
€341.65 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/10/2026

  • Ordered before 20:00 - delivered as of 26/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€413.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 65 mm
  • Width: 33 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 140 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
65 mm
Width
33 mm
Number of rows
1
Axial clearance
Not applicable
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
140 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
86.5
Lubricant
None
Relubrication feature
Without
Reference speed
6300
Skf performance class
SKF Explorer
Sealing
Without
Cage
Machined brass
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
65
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
8000
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
116
Coating
Without
Outer diameter
140
Universal matching bearing
Yes
  • Brand SKF
  • EAN 7316576650765
  • Supplier number SKF 7313 BECBM
