SKF

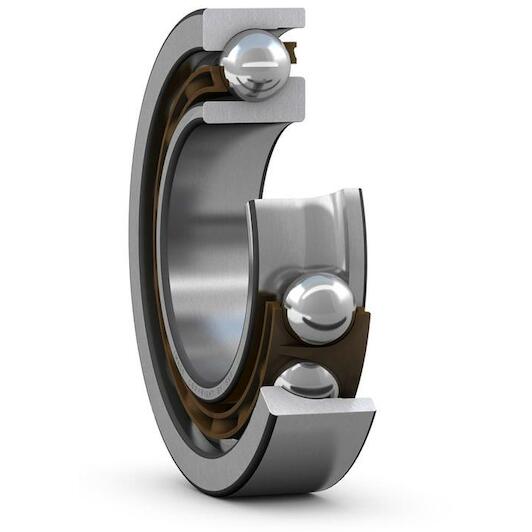

SKF 7311 BEGAP single-row angular contact ball bearing 55 x 120 x 29 mm with contact angle 40°

Recommended Retail Price €345.54
170.95 tax incl.
€141.28 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 55 mm
  • Width: 29 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 120 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577611369
  • Supplier number: SKF 7311 BEGAP
Inner diameter
55 mm
Width
29 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
120 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
60
Lubricant
None
Relubrication feature
Without
Reference speed
7000
Skf performance class
SKF Explorer
Sealing
Without
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
55
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
7000
Matched condition (axial clearance/ preload)
Light preload
Basic dynamic load rating
85
Coating
Without
Outside diameter
120
Universal matching bearing
Yes
