What are the dimensions of this SKF bearing?

The bearing has a 50 mm bore diameter, a 110 mm outside diameter, and a 27 mm width.

What type of loads can this bearing accommodate?

It accommodates simultaneous radial loads and axial loads acting in one direction with a 40° contact angle.

What does the BECBM suffix designate?

BE indicates a 40° contact angle, CB specifies axial internal clearance, and M indicates a machined brass cage.

Is this SKF bearing sealed?

No, this is an open bearing without seals, allowing you to lubricate it for your application.

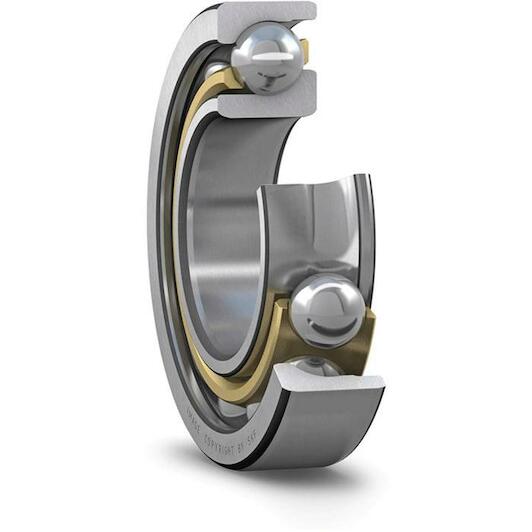

SKF 7310 BECBM single-row angular contact ball bearing 50 x 110 x 27 mm with contact angle 40°

Supplier number: SKF 7310 BECBM | EAN 7316577086396

Recommended Retail Price €564.07

279.20 tax incl.

€230.74 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 19/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

Combined load capacity: With a 40° contact angle, you efficiently accommodate simultaneous radial loads and heavy unidirectional axial forces.
Solid machined brass cage: The robust brass cage gives you superior guidance and operational stability during demanding high-speed industrial rotations.
Standardized machine mounting: With precise 50 x 110 x 27 mm dimensions, you easily fit this bearing into diverse mechanical assemblies.

In a nutshell

The right choise for

With the Skf 7310 becbm single row angular contact ball bearing, you ensure reliable operation in demanding rotating machinery. Featuring a 40° contact angle, it efficiently handles simultaneous radial loads and heavy unidirectional axial forces. The solid machined brass cage provides superior thermal stability and smooth running under high speeds and intense vibrations. With standardized dimensions of 50 x 110 x 27 mm, this open bearing integrates smoothly into industrial pumps, compressors, and gearboxes. It is also designed for universal matching in back-to-back, face-to-face, or tandem arrangements, giving you full flexibility during repairs and overhauls.

Product information FAQ

€279.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 110 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 110 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 51
Lubricant: None
Relubrication feature: Without
Reference speed: 8000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Machined brass
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 50
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 10000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 75
Coating: Without
Outer diameter: 110
Universal matching bearing: Yes

Brand SKF
01050667
EAN 7316577086396
Supplier number SKF 7310 BECBM

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 50 mm bore diameter, a 110 mm outside diameter, and a 27 mm width.
What type of loads can this bearing accommodate?: It accommodates simultaneous radial loads and axial loads acting in one direction with a 40° contact angle.
What does the BECBM suffix designate?: BE indicates a 40° contact angle, CB specifies axial internal clearance, and M indicates a machined brass cage.
Is this SKF bearing sealed?: No, this is an open bearing without seals, allowing you to lubricate it for your application.
Is this bearing suitable for universal matched mounting?: Yes, it is designed for universal matching in back-to-back, face-to-face, or tandem sets.
