What types of loads can this angular contact ball bearing handle?

It accommodates combined radial and axial loads, with the axial load acting in one direction only.

What are the dimensions of the SKF 7307 BECBM bearing?

The bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.

What material is the cage made from?

This bearing features a machined solid brass cage for high stability and strength under demanding conditions.

What is the significance of the 40° contact angle?

The 40° contact angle provides a high axial load-carrying capacity in one direction.

Does this SKF bearing have seals?

No, this is an open bearing without seals, intended for applications with external lubrication.

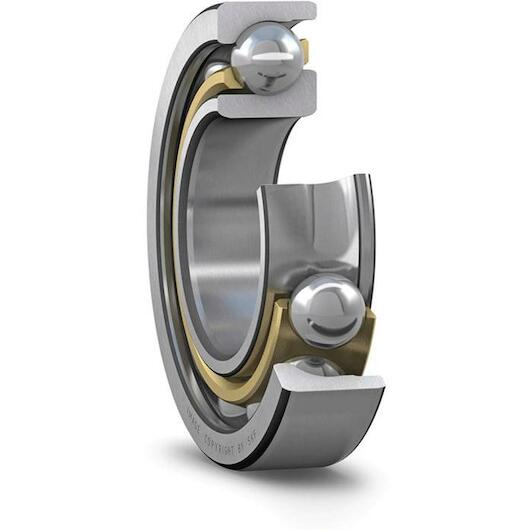

SKF 7307 BECBM single-row angular contact ball bearing 35 x 80 x 21 mm with contact angle 40°

Supplier number: SKF 7307 BECBM | EAN 7316577091437

Recommended Retail Price €299.62

148.20 tax incl.

€122.48 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 15/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with 7307 BECBM

Practical benefits

High axial load support: The 40° contact angle enables you to handle heavy unidirectional axial loads combined with radial forces.
Solid machined brass cage: The machined brass cage delivers smooth ball guidance and low friction during continuous high-speed rotation.
Universal matching design: You can easily mount bearings in sets without complex adjustments to maintain consistent internal clearance.

In a nutshell

The right choise for

With the Skf 7307 becbm single row angular contact ball bearing, you handle demanding combined radial and unidirectional axial loads with complete confidence. Thanks to the 40° contact angle, this bearing is ideally suited for heavy-duty applications such as industrial gearboxes, pumps, and compressors. The solid machined brass cage withstands severe vibrations and reduces friction during high-speed rotation. Designed for universal matching, it allows straightforward mounting in back-to-back, face-to-face, or tandem arrangements without complex shimming. Measuring 35 x 80 x 21 mm with an open design for external lubrication, this bearing delivers stable guidance and long-term operating reliability.

Product information FAQ

€148.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 80 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 21 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 80 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 26.5
Lubricant: None
Relubrication feature: Without
Reference speed: 11000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Machined brass
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 35
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 15000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 41.5
Coating: Without
Outer diameter: 80
Universal matching bearing: Yes

Brand SKF
01050100
EAN 7316577091437
Supplier number SKF 7307 BECBM

Frequently asked questions about this product

Answered by specialists

What types of loads can this angular contact ball bearing handle?: It accommodates combined radial and axial loads, with the axial load acting in one direction only.
What are the dimensions of the SKF 7307 BECBM bearing?: The bearing has a 35 mm bore diameter, an 80 mm outside diameter, and a width of 21 mm.
What material is the cage made from?: This bearing features a machined solid brass cage for high stability and strength under demanding conditions.
What is the significance of the 40° contact angle?: The 40° contact angle provides a high axial load-carrying capacity in one direction.
Does this SKF bearing have seals?: No, this is an open bearing without seals, intended for applications with external lubrication.
