SKF

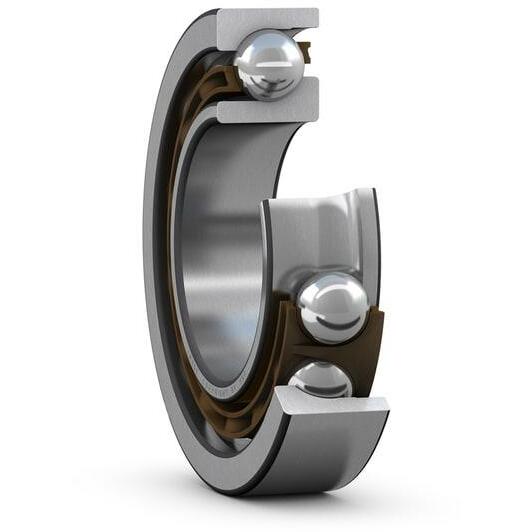

SKF 7305 BEGBP single-row angular contact ball bearing with 40° contact angle 25 mm

Recommended Retail Price €105.80
52.20 tax incl.
€43.14 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

Avantages

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 17 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (cage): Plastic
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570777529
  • Supplier number: SKF 7305 BEGBP
Inner diameter
25 mm
Width
17 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (cage)
Plastic
Outer diameter
62 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
15.3 kN
Skf performance class
SKF Explorer
Relubrication feature
Without
Reference speed
14,000 r/min
Sealing
Without
Lubricant
None
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Matched condition (axial clearance/ preload)
Medium preload
Axial internal clearance
Not applicable
Contact angle
40 °
Limiting speed
15,000 r/min
Bore diameter
25 mm
Basic dynamic load rating
26.5 kN
Coating
Without
Outside diameter
62 mm
Universal matching bearing
Yes
