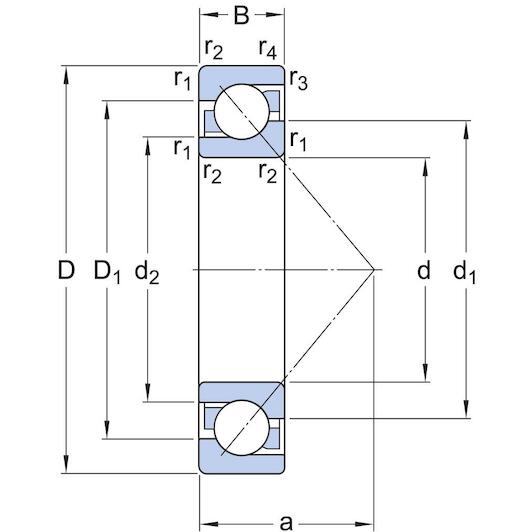

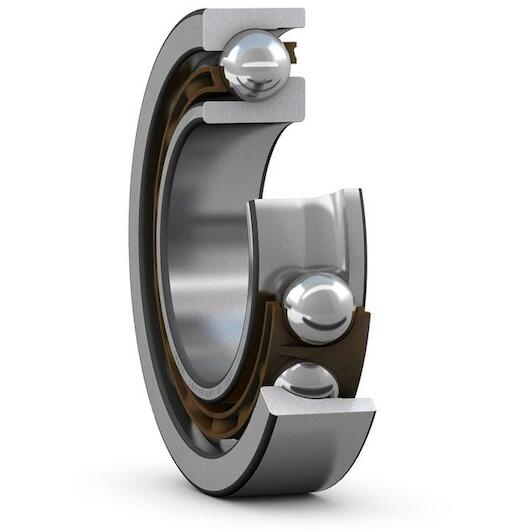

SKF 7304 BEP single-row angular contact ball bearing 20 x 52 x 15 mm with contact angle 40°

Supplier number: SKF 7304 BEP | EAN 7316576633751
Recommended Retail Price €68.04
33.60 tax incl.
€27.77 excl. VAT (incl. all environmental contributions)
On order: delivered from 05/10/2026

  • Ordered before 20:00 - delivered as of 05/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL


€33.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 20 mm
  • Width: 15 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 52 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Documents

All Features

Inner diameter
20 mm
Width
15 mm
Number of rows
1
Axial clearance
Not applicable
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
52 mm
Basic static load rating
9.5
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
17000
Sealing
Without
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
16000
Bore diameter
20
Basic dynamic load rating
17.4
Coating
Without
Outside diameter
52
Universal matching bearing
No
  • Brand SKF
  • EAN 7316576633751
  • Supplier number SKF 7304 BEP
