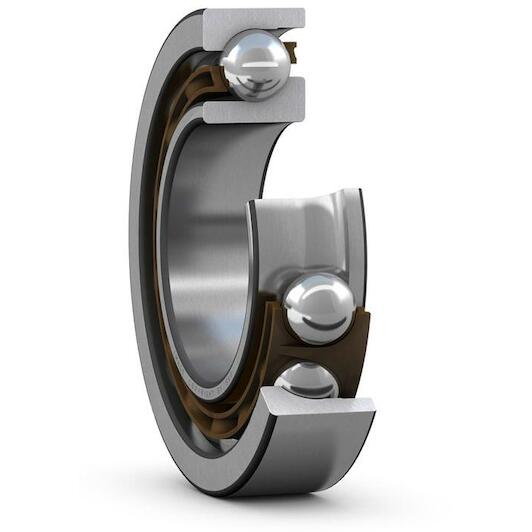

SKF 7302 BEP single-row angular contact ball bearing 15 x 42 x 13 mm with contact angle 40°

Supplier number: SKF 7302 BEP | EAN 7316576650406

Recommended Retail Price €66.21

32.60 tax incl.

€26.94 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

Handles combined heavy loads: Thanks to the 40° contact angle, you reliably support heavy radial forces alongside single-direction axial loads.
Smooth high-speed rotation: The lightweight polymer cage reduces internal friction, allowing you to reach limiting speeds of up to 20000 r/min.
Precise and compact fit: Designed with exact 15 x 42 x 13 mm dimensions, you ensure stable and efficient rotation across industrial machinery.

In a nutshell

The right choise for

With the Skf 7302 bep single row angular contact ball bearing, you reliably accommodate heavy simultaneous radial and unilateral axial loads. Featuring a 40° contact angle and an optimized internal design, this open bearing delivers dependable performance in demanding applications like pumps, compressors, and industrial gearboxes. The lightweight glass-fibre reinforced polyamide cage significantly reduces internal friction, allowing you to achieve high speeds of up to 20000 r/min. Designed with exact 15 x 42 x 13 mm dimensions, it ensures accurate shaft positioning and stable guidance across your mechanical assemblies.

Product information FAQ

€32.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 13 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 42 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 13 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 42 mm
Basic static load rating: 6.7
Ring type: One-piece inner and outer rings
Tolerance class: Normal
Contact type: Normal contact (two-point contact)
Lubricant: None
Matched arrangement: No
Relubrication feature: Without
Reference speed: 22000
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 20000
Bore diameter: 15
Basic dynamic load rating: 13
Coating: Without
Outside diameter: 42
Universal matching bearing: No

Brand SKF
01050065
EAN 7316576650406
Supplier number SKF 7302 BEP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has an inside diameter of 15 mm, an outside diameter of 42 mm, and a width of 13 mm.
What types of load can the SKF 7302 BEP accommodate?: It is designed for combined radial and unilateral axial loads thanks to its 40° contact angle.
What material is used for the bearing cage?: The cage of this bearing is made of glass-fibre reinforced polyamide.
Is this angular contact ball bearing sealed?: No, this is an open bearing without seals and requires lubrication for operation.
What does the BEP suffix mean in this model?: B indicates a 40° contact angle, E denotes an optimized internal design, and P signifies a polyamide cage.
