SKF

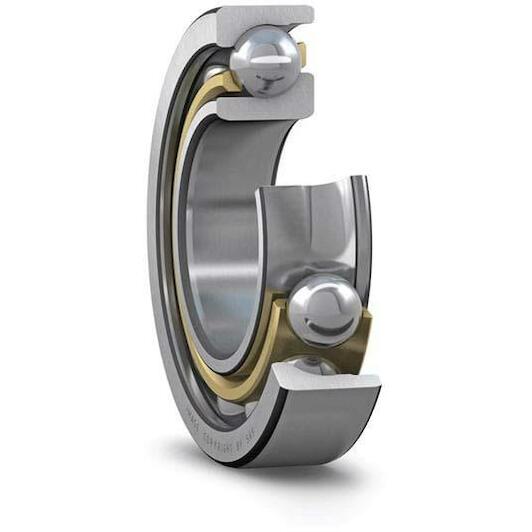

SKF 7226 BM single-row angular contact ball bearing 130 mm

Recommended Retail Price €2,477.87
1,226.60 tax incl.
€1,013.72 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 130 mm
  • Width: 40 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (cage): Brass (solid)
  • Outer diameter: 230 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576650291
  • Supplier number: SKF 7226 BM
Inner diameter
130 mm
Width
40 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (cage)
Brass (solid)
Outer diameter
230 mm
Basic static load rating
193
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Reference speed
3400
Matched arrangement
No
Relubrication feature
Without
Sealing
Without
Lubricant
None
Cage
Machined brass
Locating feature, bearing outer ring
None
Contact angle
40
Limiting speed
4000
Bore diameter
130
Basic dynamic load rating
186
Coating
Without
Outside diameter
230
Material, bearing
Bearing steel
