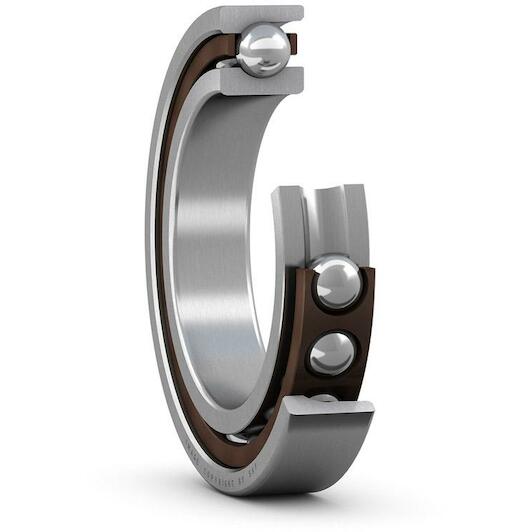

SKF 7216 CD/P4ADGA single-row super-precision angular contact ball bearing 80 x 140 x 52 mm with contact angle 15°

Recommended Retail Price €3,411.43

1,688.80 tax incl.

€1,395.70 excl. VAT (incl. all environmental contributions)

SKF 7216 CD/P4ADGA single-row super-precision angular contact ball bearing 80 x 140 x 52 mm with contact angle 15°

€1,688.80 Recommended Retail Price €3,411.43

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information
Additional info

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Very high running accuracy
Very high load carrying capacity

Key features according to our expert

Inner diameter: 80 mm
Width: 52 mm
Material (bearing seal): Not applicable
Outer diameter: 140 mm

Specifications / All features

Brand: SKF
01051519
EAN: 07316576626418
Supplier number: SKF 7216 CD/P4ADGA

Inner diameter: 80 mm
Width: 52 mm
Material (bearing seal): Not applicable
Outer diameter: 140 mm
Sealing: Without

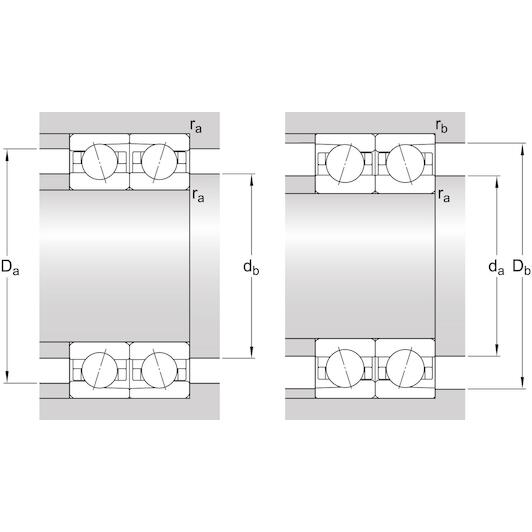

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Design: High-capacity D
Lubricant: None
Matched arrangement: Universal matching
Basic static load rating: 150
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Number of bearings in matched set: 2
Ring type: One-piece inner and outer rings
Matched condition (axial clearance/ preload): Extra light preload
Contact angle: 15
Bore diameter: 80
Number of rows: 2
Basic dynamic load rating: 140
Coating: Without
Outside diameter: 140
Note: Refer to catalogue data or contact SKF for the attainable speeds
